Frequently Asked Questions
Q: What is the combined mechanical and electrical strength of this unit?
A: The combined M&E strength is rated at 3,000 lb or 13.3 kN.
Q: Which industry standard was used for manufacturing?
A: This product is manufactured in strict accordance with the ANSI C29.5 standard.

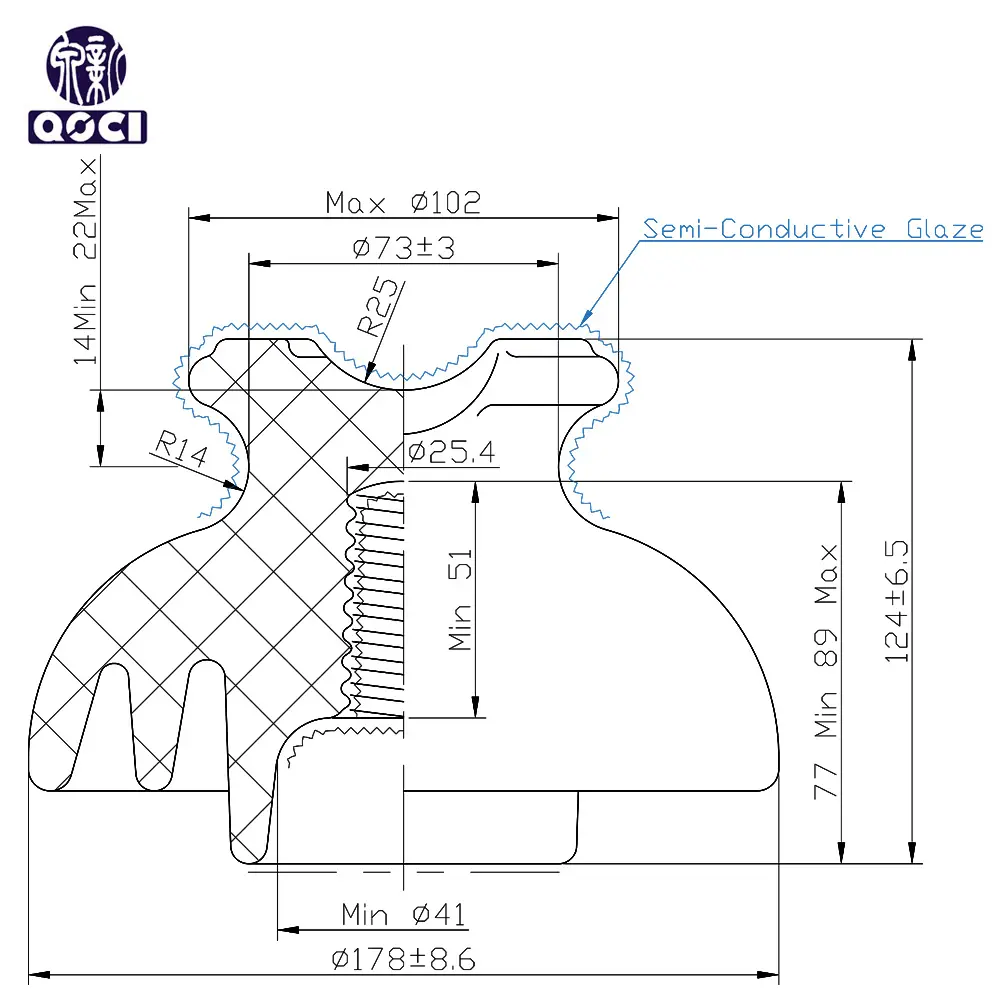

Q: What are the primary dimensions for spacing and diameter?
A: The spacing (S) is 7 7/8 inches (124 mm) and the diameter (D) is 7 inches (178 mm).
Q: What is the low frequency dry flashover voltage rating?
A: The unit features a low frequency dry flashover voltage of 80 kV.
Q: How is the product packed for bulk shipping?
A: Each pallet contains 336 units, with each unit weighing approximately 6.4 lb (2.9 kg).
Q: What is the leakage distance of this insulator?
A: The total leakage distance (C/D) is 12 inches (305 mm).
