In the contemporary landscape of global energy transmission, the integrity of high-voltage (HV) and ultra-high-voltage (UHV) power grids is increasingly challenged by environmental degradation. Industrial smog, coastal salt spray, and desert sandstorms create conductive layers on insulator surfaces, leading to "pollution flashovers"—catastrophic electrical failures that can paralyze entire regional grids. As a premier Anti-Pollution Type Supplier & Factory, Jiangxi QOCI Electric Co. Ltd stands at the forefront of mitigating these risks through advanced material science and aerodynamic structural design.
Founded in 2002 with a registered capital of 508 million Yuan, Jiangxi QOCI Electric operates a 70,000 m² state-of-the-art facility in Luxi County, Pingxiang. This region is internationally recognized as the "Insulator Capital of China," providing a robust supply chain ecosystem that ensures zero-delay delivery and competitive raw material procurement.

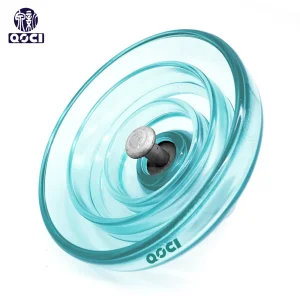

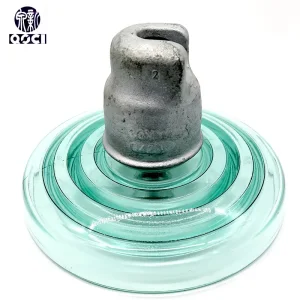

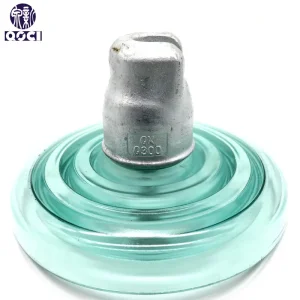

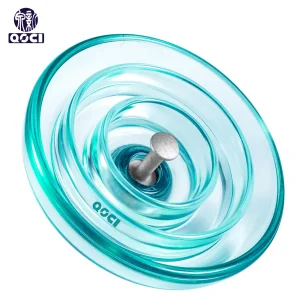

With an annual output of 39,000 tons and 53+ senior engineering technicians, we hold 26+ patents in glass tempering and shed profile optimization. Our U120BLP and U160BLP series are engineered to exceed IEC 60305 standards, providing superior leakage distances compared to standard profiles.
Active participation in green energy construction defines our mission. Our RTV (Room Temperature Vulcanization) silicone-coated glass insulators represent the pinnacle of eco-friendly, low-maintenance insulation, reducing the carbon footprint of grid operations by eliminating frequent manual cleaning cycles.
Traditional insulators suffer in humid coastal areas. Our Anti-Fog Profile (U70BP to U420BP) features deeply ribbed under-sheds that create "dry zones" even during heavy mist. This design increases the leakage distance/spacing ratio to approximately 3.2, preventing arc bridging across the insulator string.
For extreme industrial zones, we offer factory-applied RTV silicone coatings. The mineral fillers embedded in the silicone matrix provide "Hydrophobicity Transfer," where the water-repellent properties migrate through the pollution layer, maintaining high surface resistance under the most adverse conditions.
The next decade will see the integration of IoT sensors within the cap-and-pin structure. QOCI Electric is currently piloting "Smart Glass" projects that monitor leakage current and mechanical tension in real-time, feeding data into AI-driven predictive maintenance platforms.
Our factory leverage the Pingxiang Cluster Advantage. Unlike fragmented manufacturers, our ecosystem includes localized access to high-purity quartz, specialized tempering kilns, and global logistics hubs. This integration allows Jiangxi QOCI to offer a "Fast Delivery Guarantee" that is 30% faster than the industry average.
Open profile (aerodynamic) designs prevent sand accumulation and ice-bridging, optimized for the high-temperature, low-rain environments of the Arabian Peninsula.
High-creepage anti-pollution glass (U120BLP) handles the extreme salt fog and tropical humidity typical in Indonesia and the Philippines.
Focus on RTV-coated suspension strings to meet stringent environmental regulations and reduce maintenance costs in heavy chemical industrial corridors.
Specialized Triple-Shed types designed for thin-air environments, providing stable electrical performance at altitudes exceeding 3,000 meters.
Every unit leaving our factory undergoes a rigorous quality protocol. This includes Thermal Shock Testing (guaranteeing zero spontaneous breakage), Mechanical Load Testing (70kN to 530kN), and Steep-front Wave Flashover Tests. We ensure complete compliance with ISO 9001, ISO 14001, and OHSAS 18001 standards.
A: Toughened glass insulators possess a unique "self-shattering" property upon failure, making faulty units easy to identify from the ground without complex testing. Additionally, their smooth surface offers better self-cleaning properties in rain and wind compared to porcelain.
A: The 'U120' signifies a 120kN electromechanical failing load, while 'BLP' indicates the Anti-Pollution profile with extended creepage distance, essential for 110kV to 330kV lines in coastal or industrial zones.
A: Yes, we provide factory-applied RTV silicone coating for our entire range, including Standard, Fog, and Aerodynamic types, ensuring a controlled environment for the best adhesion and coating longevity.
A: Thanks to our 39,000-ton annual output, we can typically mobilize shipping within 4-6 weeks for standard configurations, supported by our integrated supply chain in Pingxiang.
