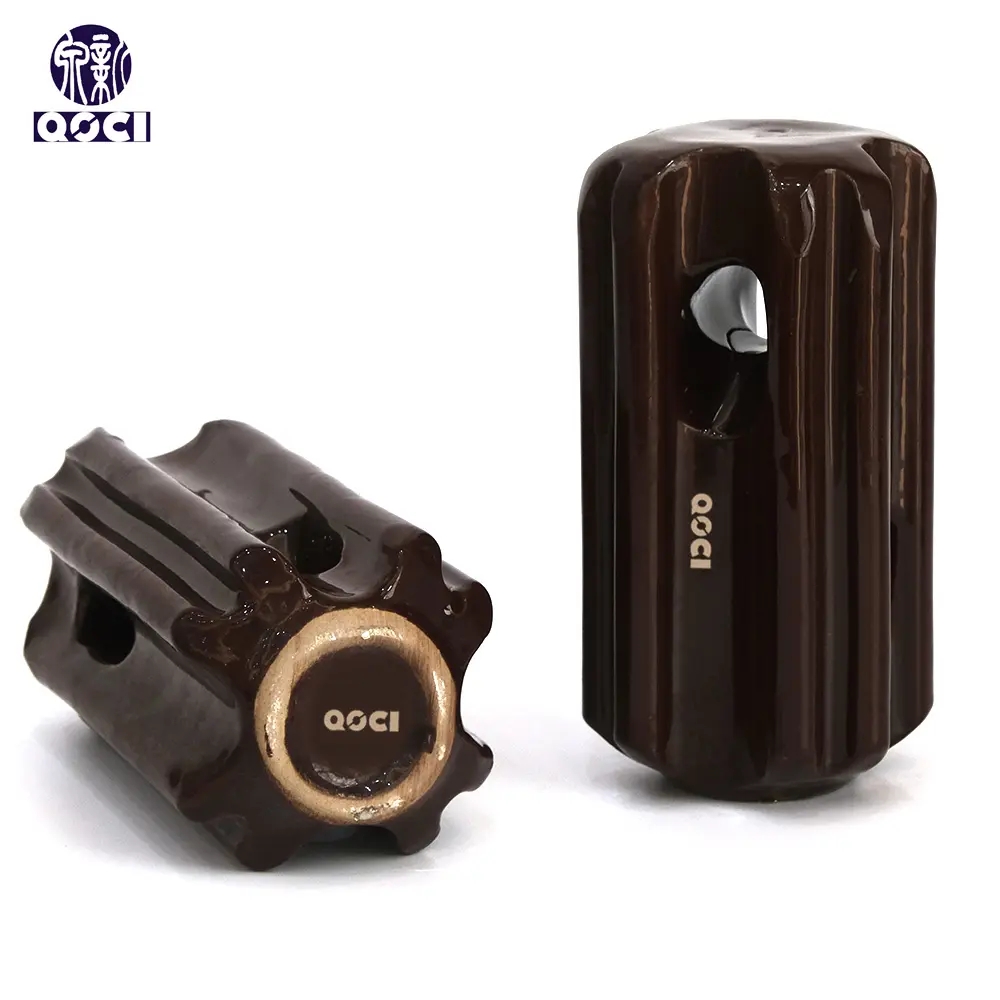

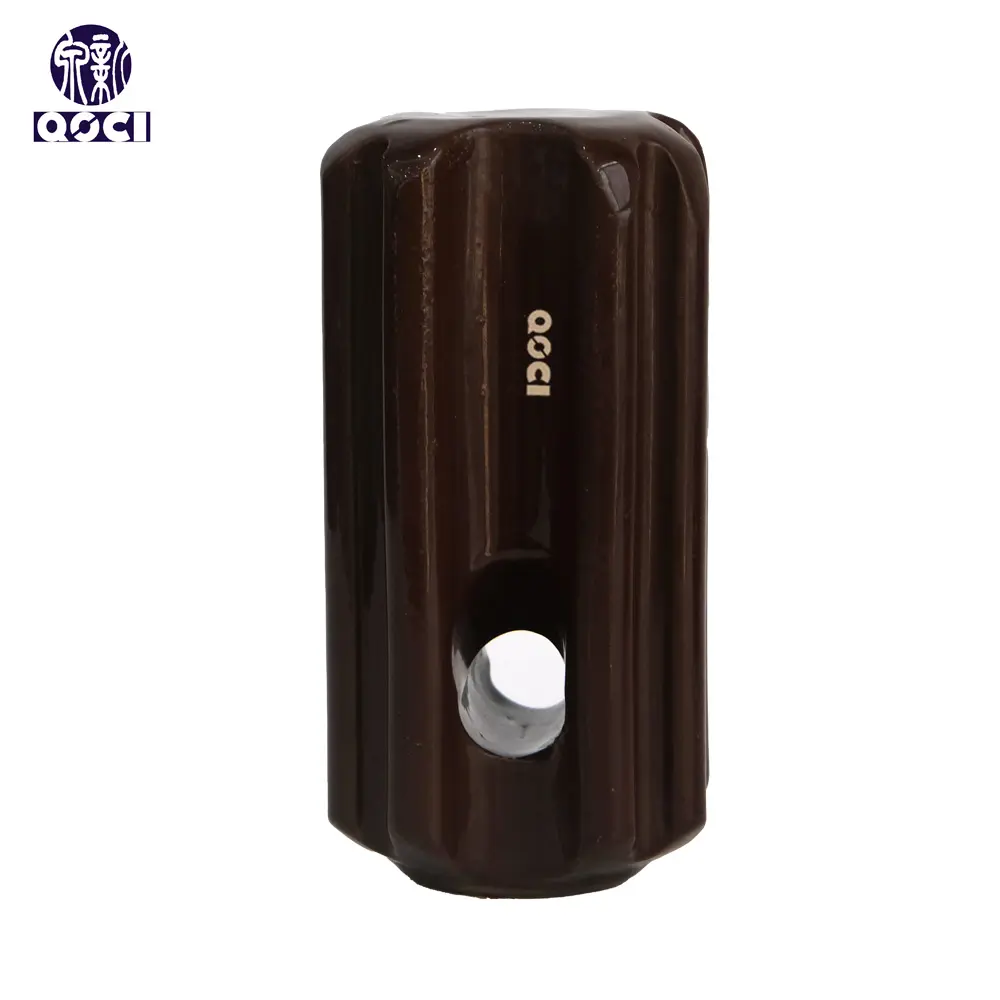

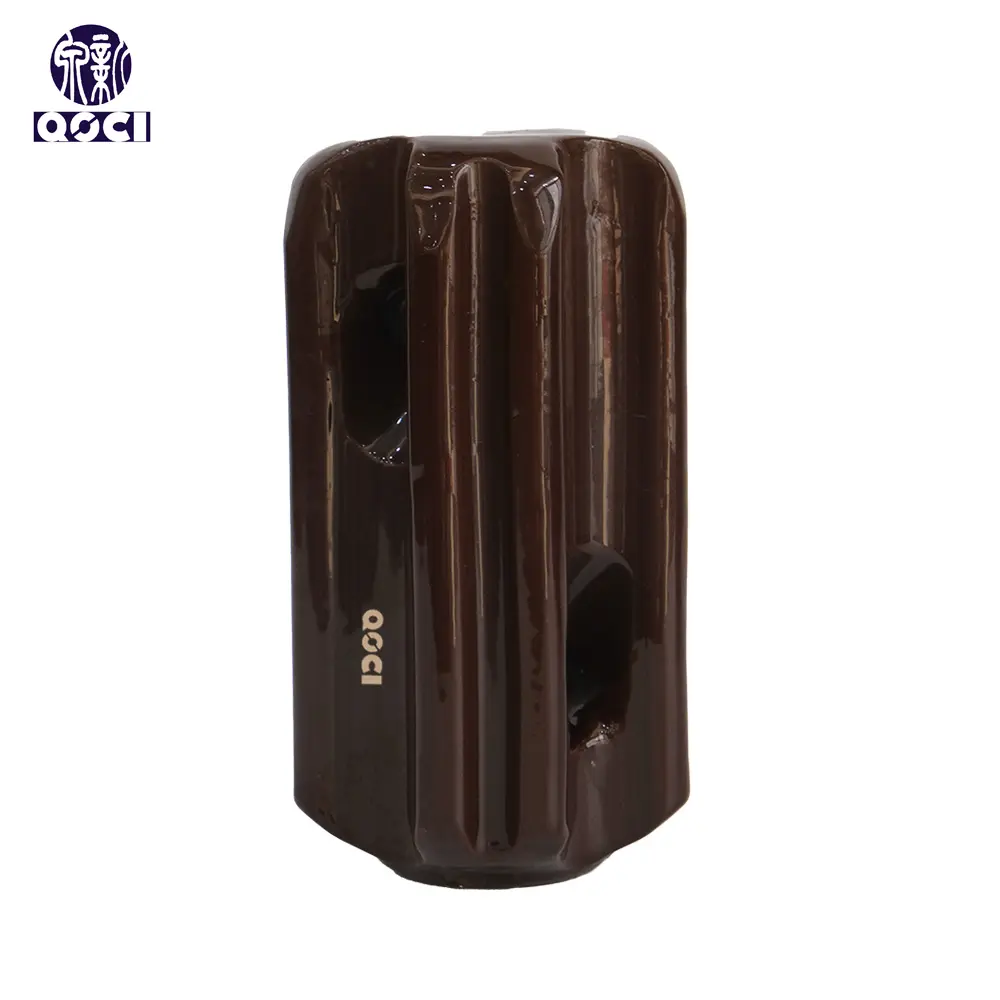

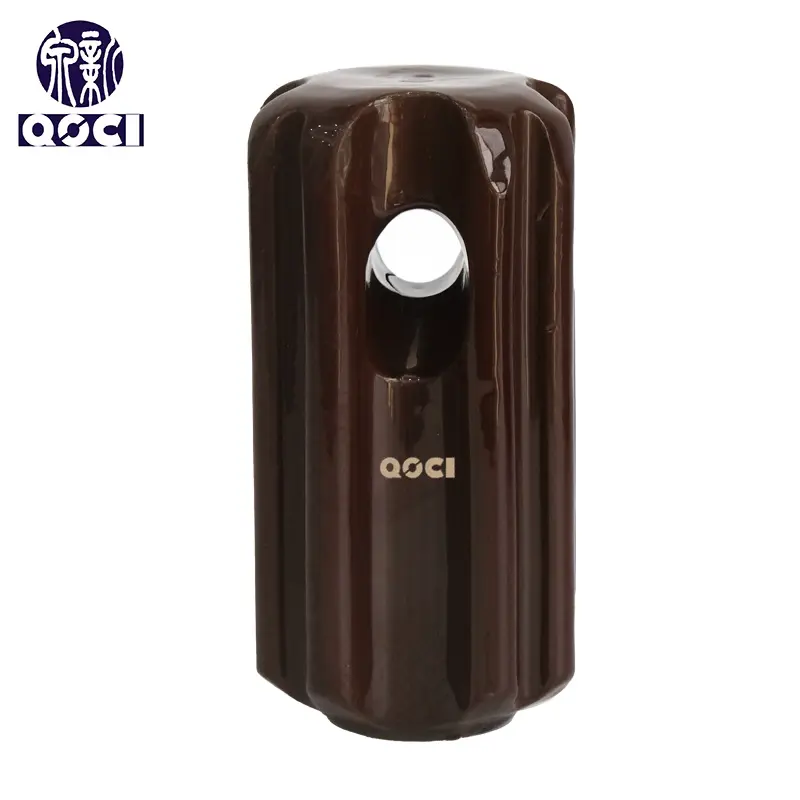

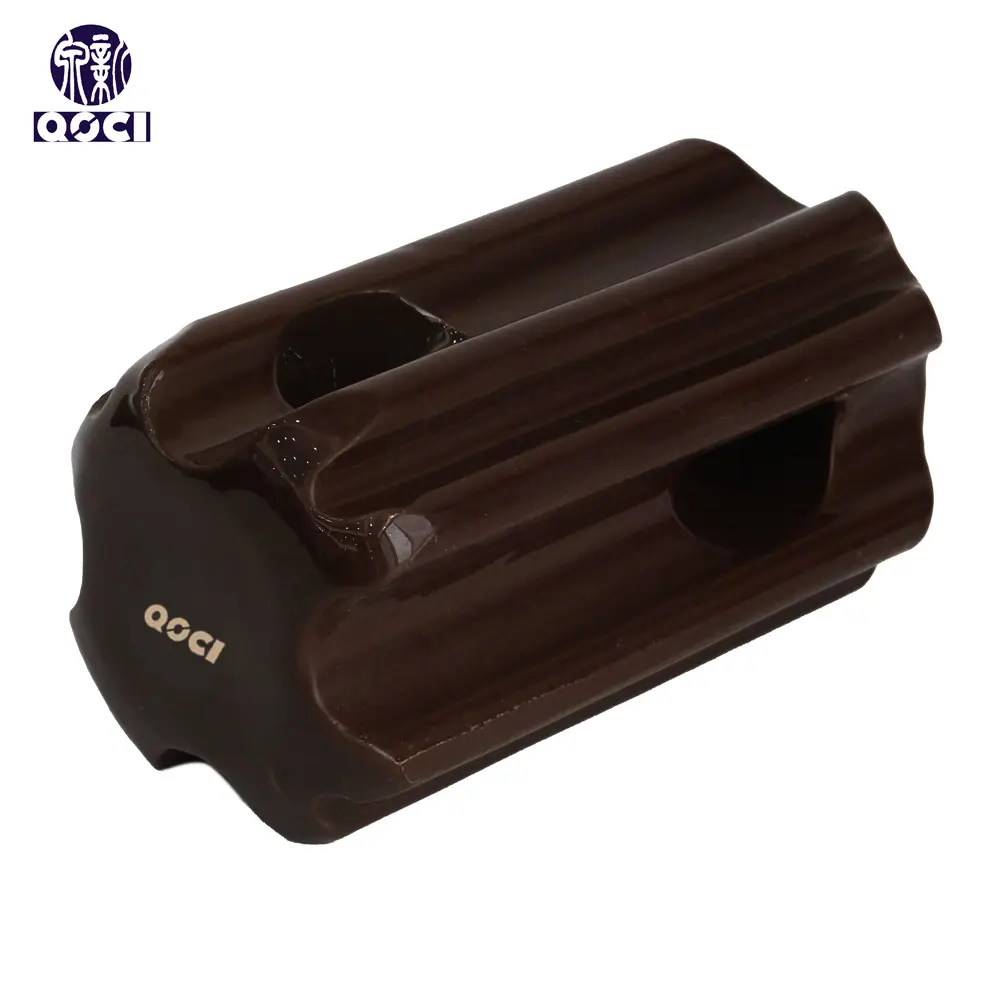

The guy strain insulator is an insulating device installed on the stay wires of power or communication towers, designed to prevent electrification of the stay wire while bearing tension to ensure line safety and stable operation.

Send Inquiry

Product Description

Product Drawing

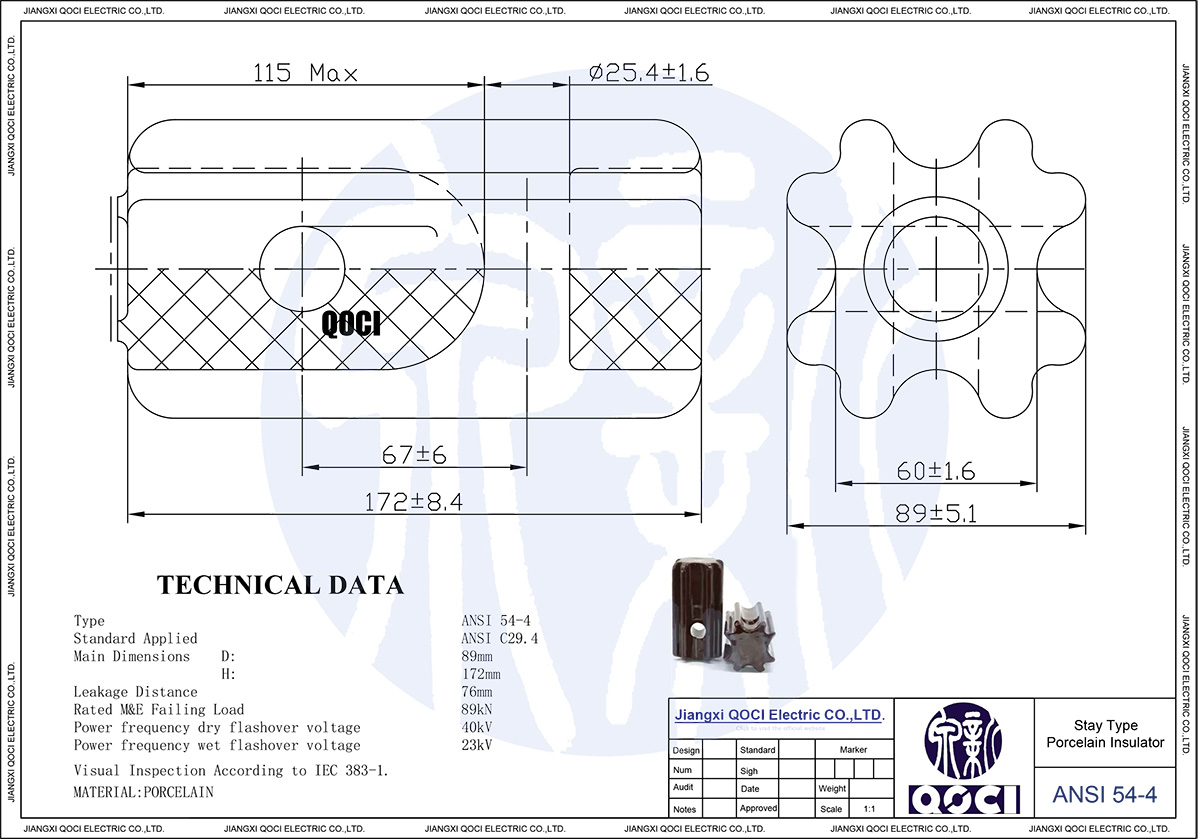

Stay Insulator Drawing
Technical Specifications
Stay Insulators Parameters
ANSI Class Gy3 Gy4 Gy45 Gy70 Gy90 54-1 54-2 54-3 54-4
Dimensions
Max Diameter mm - - - - - 64 73 86 97
Height mm 216 280 90 146 172 89 108 140 172
Creepage distance mm 118 126 43 59 76 41 48 57 76
Mechanical Values
Cantilever strength kn 222 222 45 70 80 45 55 91 91
Electrical Values
Low frequency dry flashover voltage kv 50 60 20 25 30 25 30 35 40
Low frequency wet flashover voltage kv 35 40 10 15 20 12 15 18 23
Packing and Shipping Data
Net weight (approx.) kg 4.2 5.0 0.5 1.2 1.85 0.50 0.65 1.20 1.85
Detailed Photos

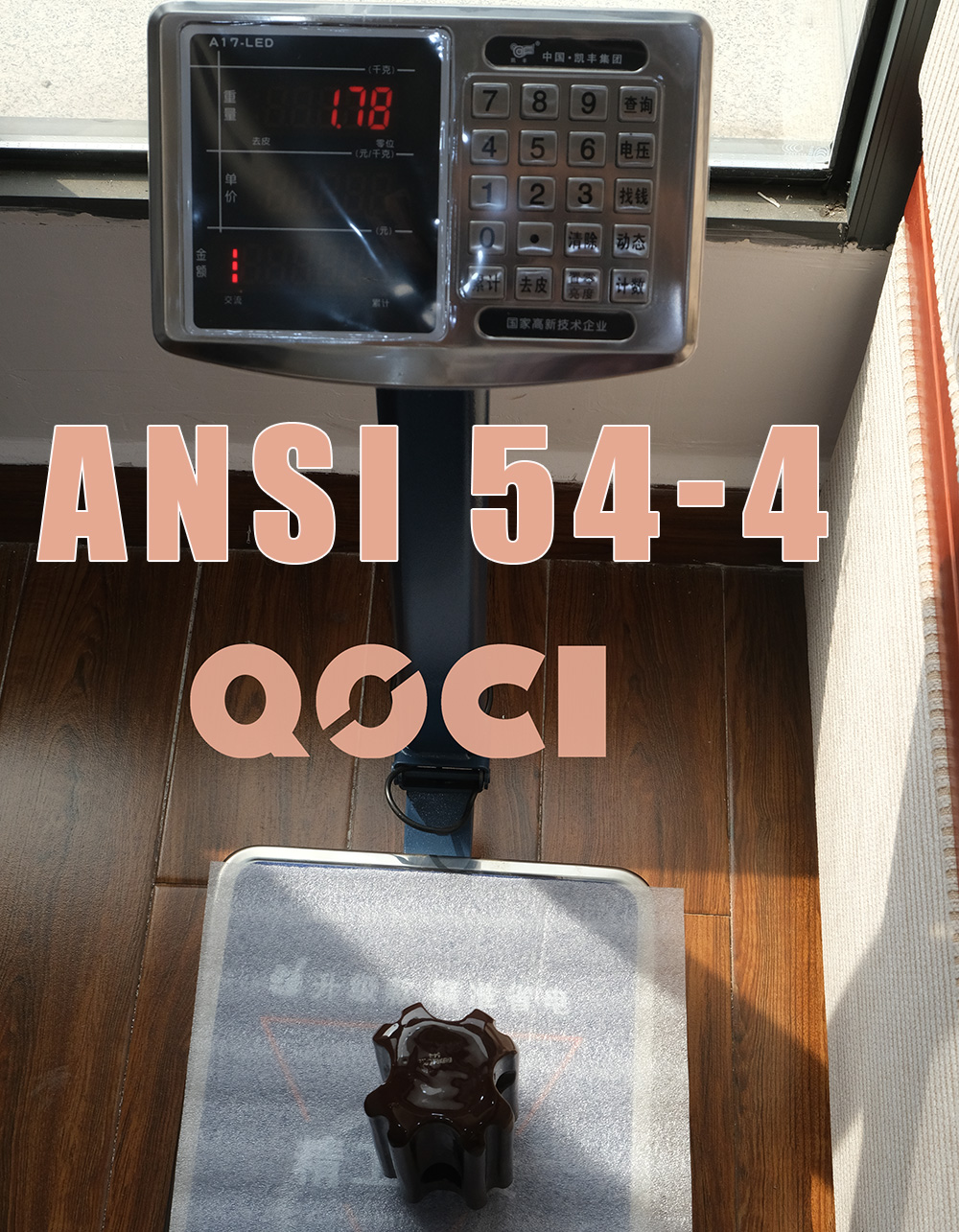

ANSI 54-4 Detailed View
Frequently Asked Questions
What are the primary applications for these stay insulators?
Stay insulators are primarily used in guy wires (stay wires) for overhead transmission lines or poles to provide insulation and structural safety, ensuring that current does not reach the ground through the stay wires.
What is the cantilever strength of the ANSI 54-4 model?
The ANSI 54-4 model features a robust cantilever strength of 91 kn, making it suitable for high-tension applications.
How does the creepage distance vary across different ANSI classes?
Creepage distance varies based on the size and design, ranging from 41mm for the 54-1 class up to 126mm for the Gy4 class, allowing for selection based on environmental pollution levels.
What are the electrical flashover voltage ratings?
The ratings depend on the model. For instance, the 54-4 model has a low frequency dry flashover voltage of 40kv and a wet flashover voltage of 23kv.
Are these insulators compliant with international standards?
Yes, these insulators are designed and tested according to ANSI (American National Standards Institute) standards, specifically classes like 54-1, 54-2, 54-3, and 54-4.
What is the weight range for these porcelain insulators?
The net weight starts from approximately 0.5 kg for smaller units like the 54-1 and goes up to 5.0 kg for larger units like the Gy4 class.
