Frequently Asked Questions
What industry standard does this product comply with?
This product is manufactured in strict accordance with the ANSI C29.5 industry standard, ensuring high reliability and performance for electrical applications.
What are the critical electrical flashover values?
The insulator features a low frequency dry flashover voltage of 65 kV and a wet flashover voltage of 35 kV. The critical impulse flashover is 105 kV (positive) and 130 kV (negative).
What is the mechanical strength of the unit?

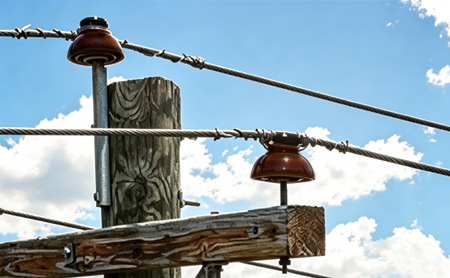

The combined mechanical and electrical (M&E) strength is rated at 3,000 lb (13.3 kN), providing robust support for power line installations.
Can you provide the weight and pallet information?
Each unit weighs approximately 4.1 lb (1.86 kg). For bulk shipping, the standard pallet quantity is 420 units.
What is the leakage and arcing distance?
The insulator provides a leakage distance of 9 inches (229 mm) and a dry arcing distance of 5 inches (127 mm).
What are the radio-influence voltage (RIV) specifications?
The maximum RIV at 1000 kHz is 50 μV with a test voltage rms to ground of 10 kV.
