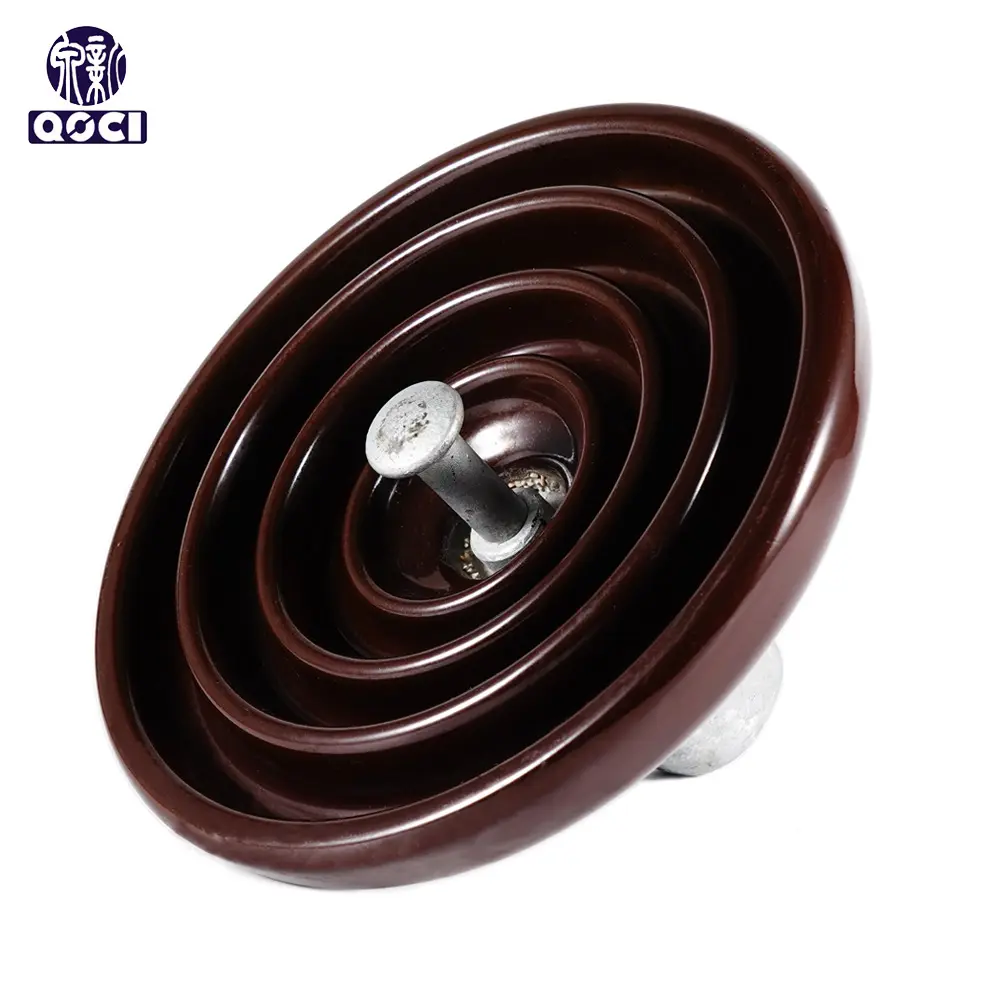

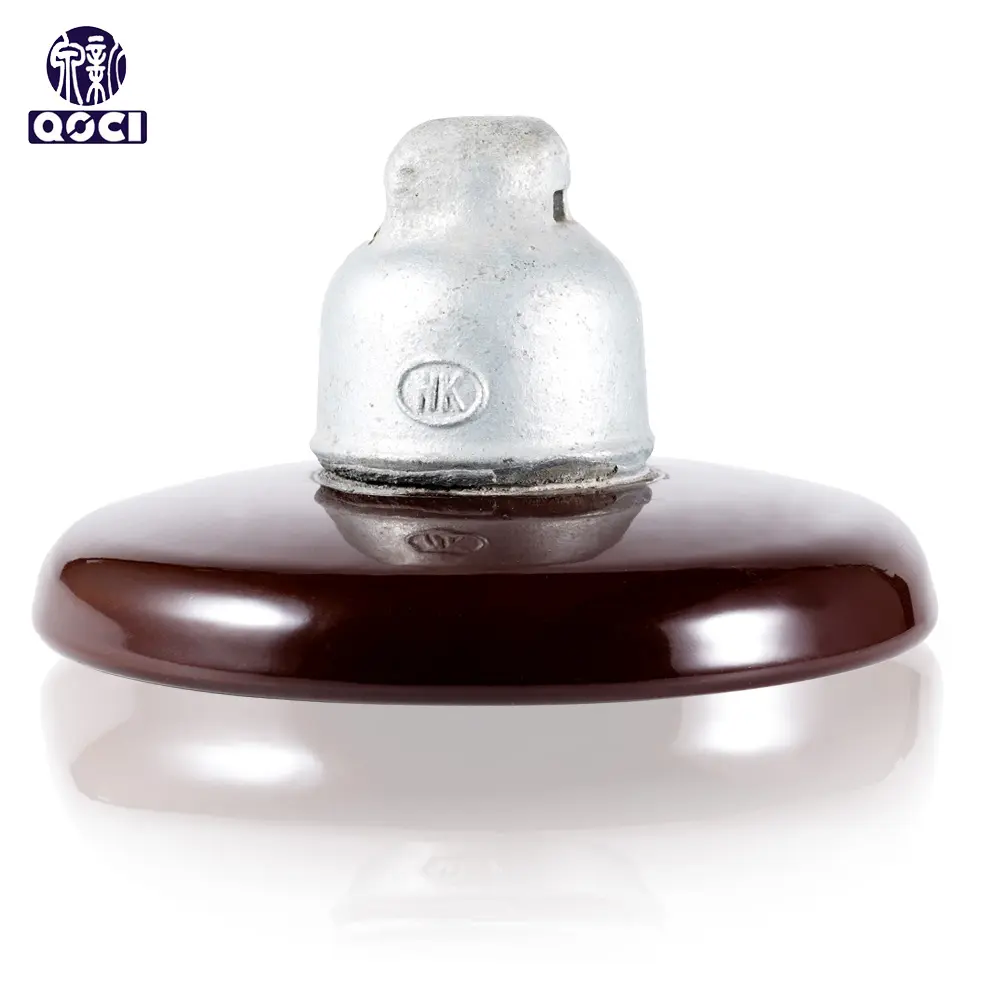

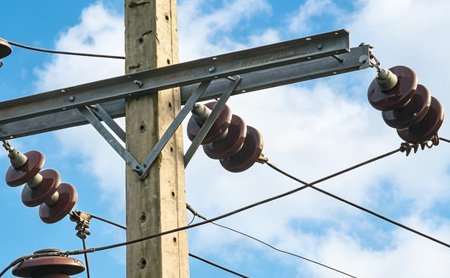

Dimensional Data

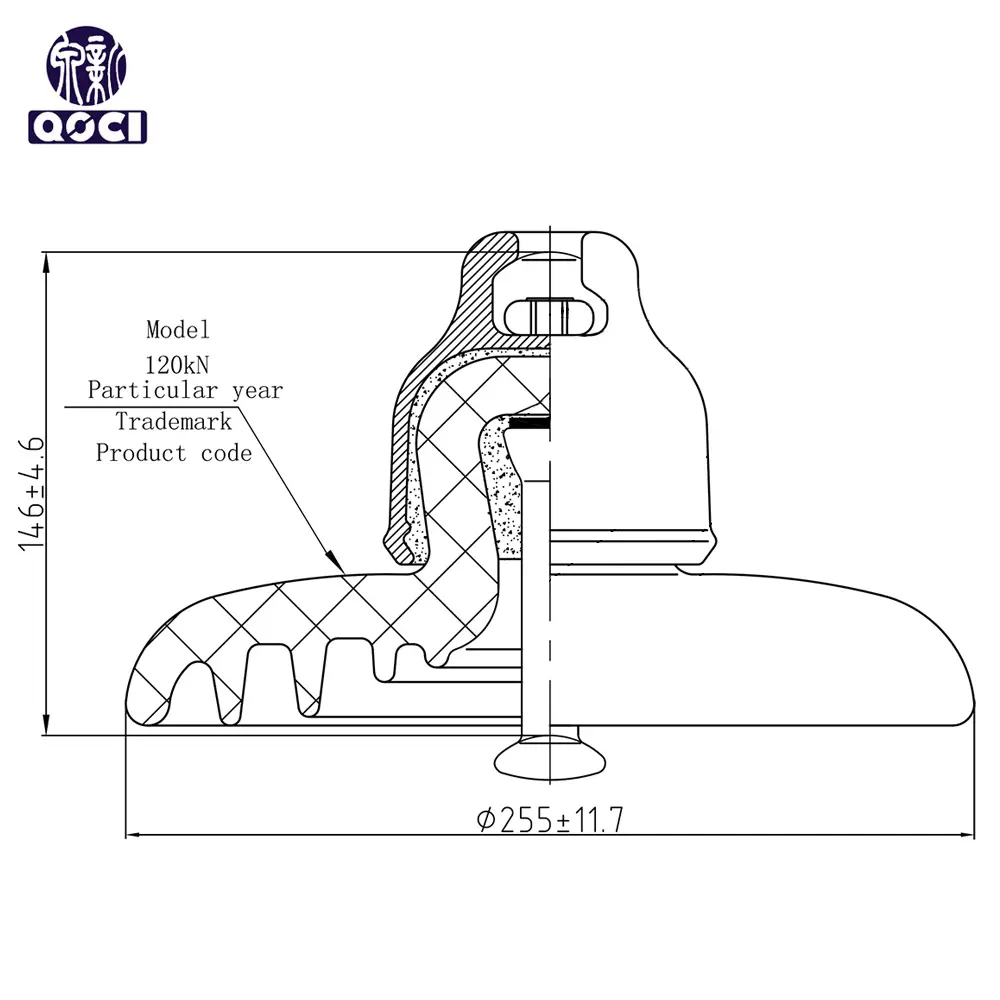

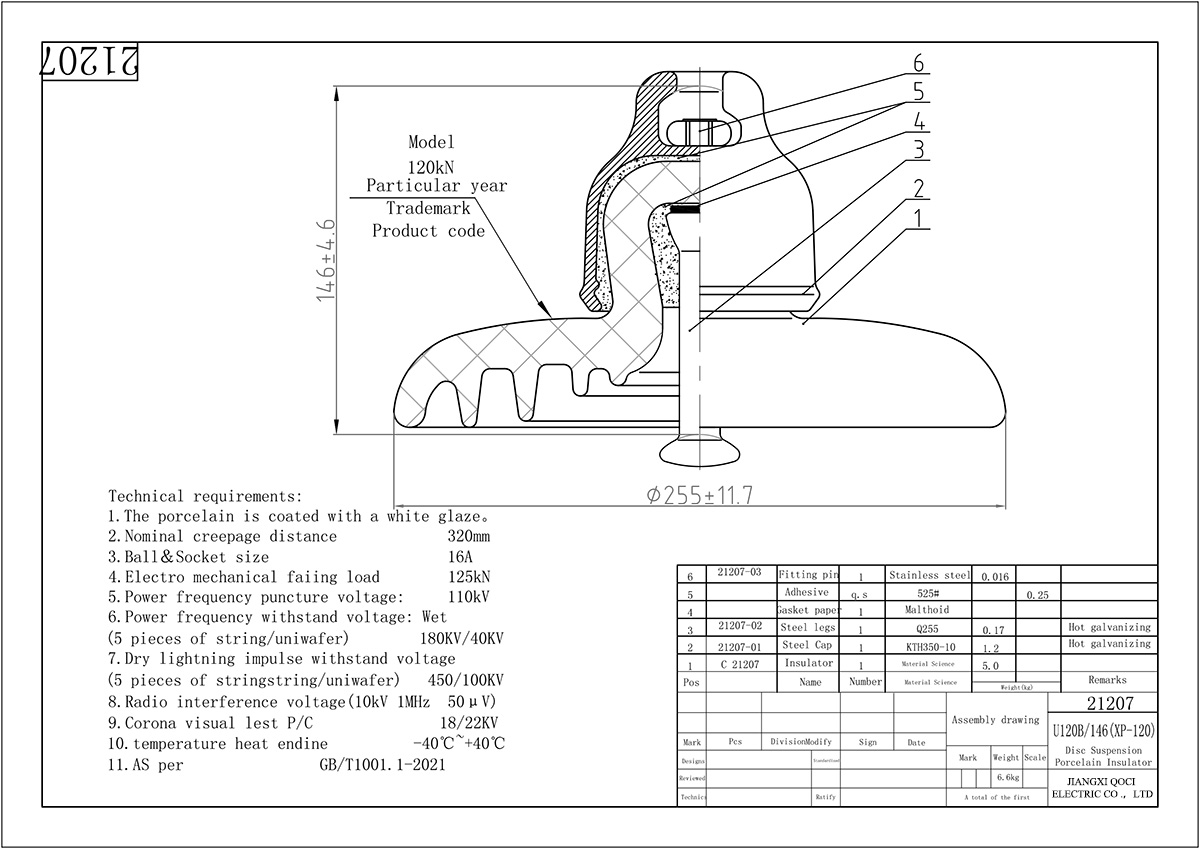

Spacing (S)5 3/4 inch (146 mm)
Diameter (D)10 inch (254 mm)
Leakage distance (C/D)12 5/8 inch (320 mm)
Dry arcing distance7 3/4 inch (197 mm)
Coupling size16 mm (Type J)
āļø
Mechanical Values
Combined M&E strength25,000 lb (111 kN)
Impact strength90 inch-lb (10 NĀ·m)
Routine proof test load12,500 lb (55.5 kN)
Time load test value15,000 lb (57 kN)
Maximum working load12,500 lb (55.5 kN)
ā”
Electrical Values
Low frequency dry flashover80kV
Low frequency wet flashover50kV
Critical impulse flashover (+)125kV
Critical impulse flashover (-)130kV
Low frequency puncture voltage110kV
š”
Radio-influence Voltage
RIV test voltage rms to ground10kV
Maximum RIV at 1000 kHz50Ī¼V
Corona visual test P/C18/22KV
ā
Frequently Asked Questions
What is the mechanical strength rating for this insulator?
The combined Mechanical and Electrical (M&E) strength is 25,000 lb, which is equivalent to 111 kN.
What are the key dimensions of the unit?
The insulator has a diameter of 254 mm (10 inches) and a spacing of 146 mm (5 3/4 inches).
What is the leakage distance for high-voltage performance?
This model provides a leakage distance of 320 mm (12 5/8 inches) to ensure reliable insulation.
Which industry standards does this product comply with?
The insulators are manufactured and tested in strict accordance with the GB/T1001.1-2021 standard.
What is the standard packaging configuration?
Each unit weighs approximately 5.2kg, and they are typically packed with 6 insulators per wooden crate.
What is the coupling size for installation?
The coupling size is 16 mm, designed as Type J for standard utility compatibility.
