Frequently Asked Questions
What industry standard does this insulator comply with?
This product is manufactured in strict accordance with the ANSI C29.5 standard, ensuring high quality and reliability for electrical applications.
What is the mechanical strength of this unit?
The combined Mechanical and Electrical (M&E) strength is rated at 3,000 lb (13.3 kN), providing robust performance under load.
What are the flashover voltage ratings for wet and dry conditions?
The insulator features a low frequency dry flashover voltage of 35 kV and a low frequency wet flashover voltage of 20 kV.

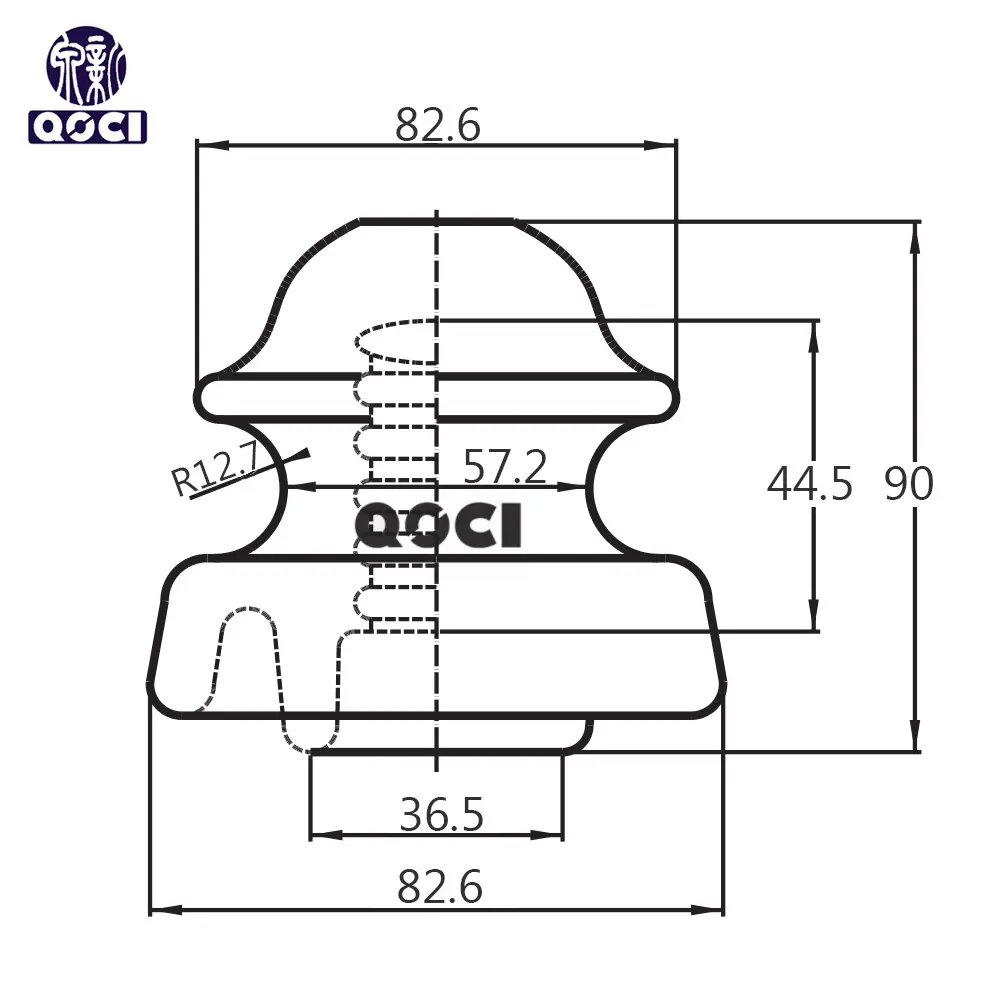

What is the leakage distance of the dimensional data?
The leakage distance is 4 inches (102 mm), designed to prevent tracking and ensure safety in various environmental conditions.
What is the Radio-influence Voltage (RIV) performance?
At a test voltage of 5 kV rms to ground, the maximum RIV at 1000 kHz is 50 μV, with a corona visual test rating of 18/22 KV.
How much does each unit weigh for shipping purposes?
Each unit has an approximate net weight of 1.2 lb (0.54 kg), making it lightweight yet durable for installation.
