U210B Glass Insulator
U
Refers To Disc Suspension Insulator
210
Rated Mechanical Failing Load: 210kN
B
Ball And Socket Type Connection
  • Height: 170mm - Structure height of the insulator.
  • Diameter: 280mm - Diameter of the insulator disc.
  • Creepage Distance: 400mm - Total leakage path.
  • Profile Type: Standard profile Toughened Suspension Type.
  • Application: Suitable for medium and high voltage transmission lines and substation equipment under various climatic conditions.

Technical Drawing

Product drawing

Technical Parameters

IEC Designation Unit U210B/170
Mechanical failing loadkN210
Diameter Dmm280
Height Hmm170
Creepage distance Lmm400
Socket couplingmm20
Wet power frequency withstand voltagekV45
Dry lightning impulse withstand voltagekV110
Power frequency puncture voltagekV130
Radio interference voltage (10kV 1MHz)μV50
Corona visual testkV18/22
Power frequency electric arc voltagekA0.12s/20Ka
Impulse puncture voltageP.U2.8
Net weight per unitkg7.2

Suspension Insulator Components

Insulator components

Our suspension insulators are engineered with high-quality elements:

  • Dielectric: Toughened glass with optimal shape for diverse environmental conditions.

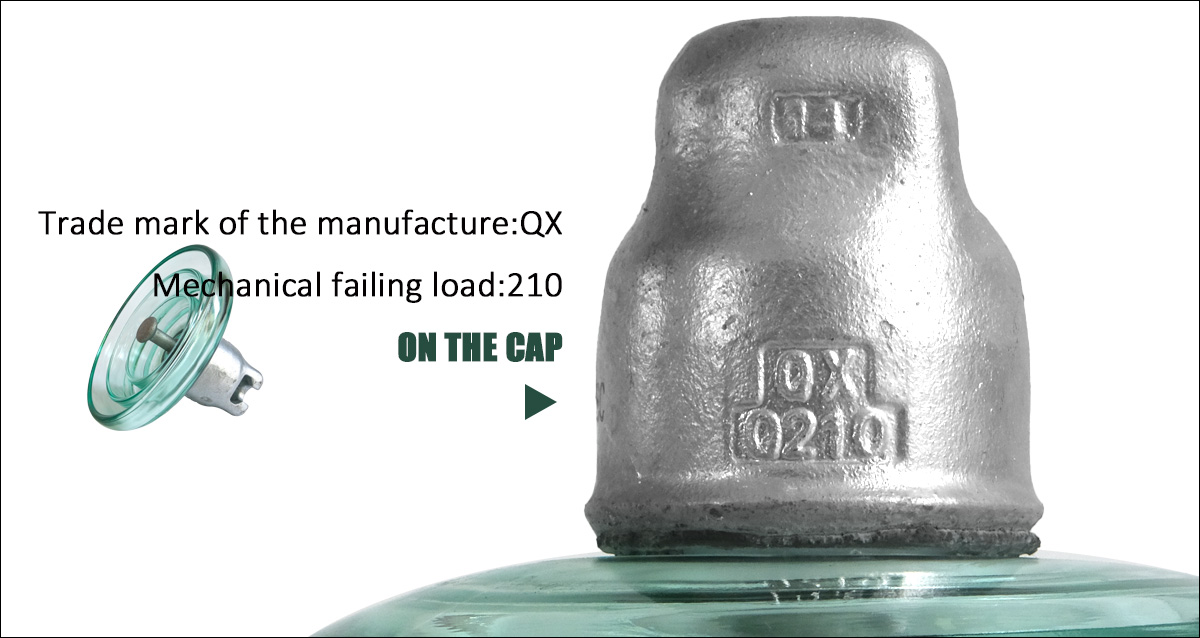

  • Cap: Hot-dip galvanized nodular or ductile malleable cast iron.
  • Pin: Hot-dip galvanized forged steel for maximum durability.
  • Assembly: Assembled using specialized aluminous cement to withstand thermomechanical stress.
  • Locking Device: Stainless steel or phosphor bronze split pin (R-pin or W-pin) for secure coupling.
  • Protection: Optional zinc sleeve (sacrificial anode) available for high-pollution environments.

Product Gallery

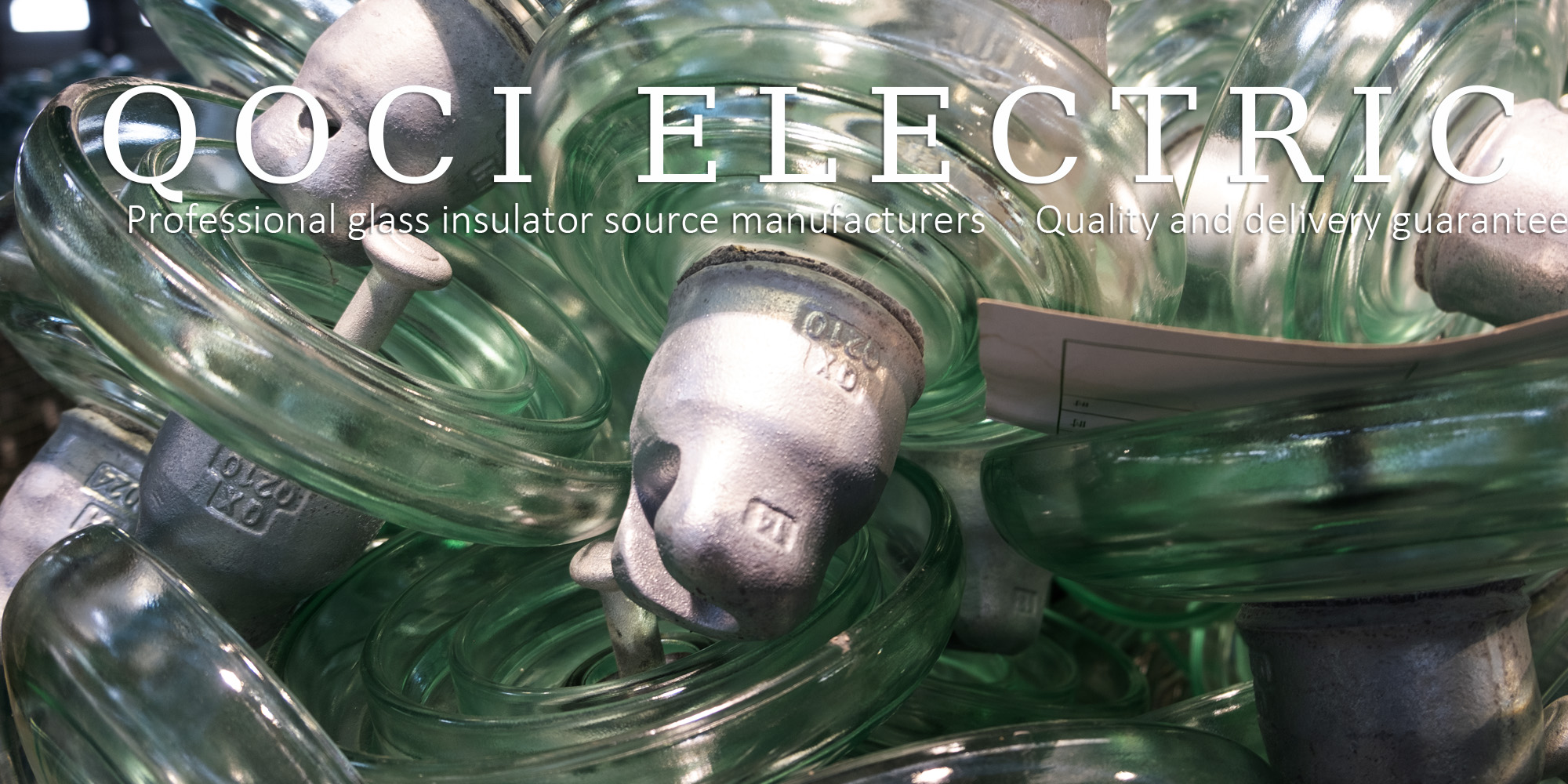

U210B glass insulator photo 1

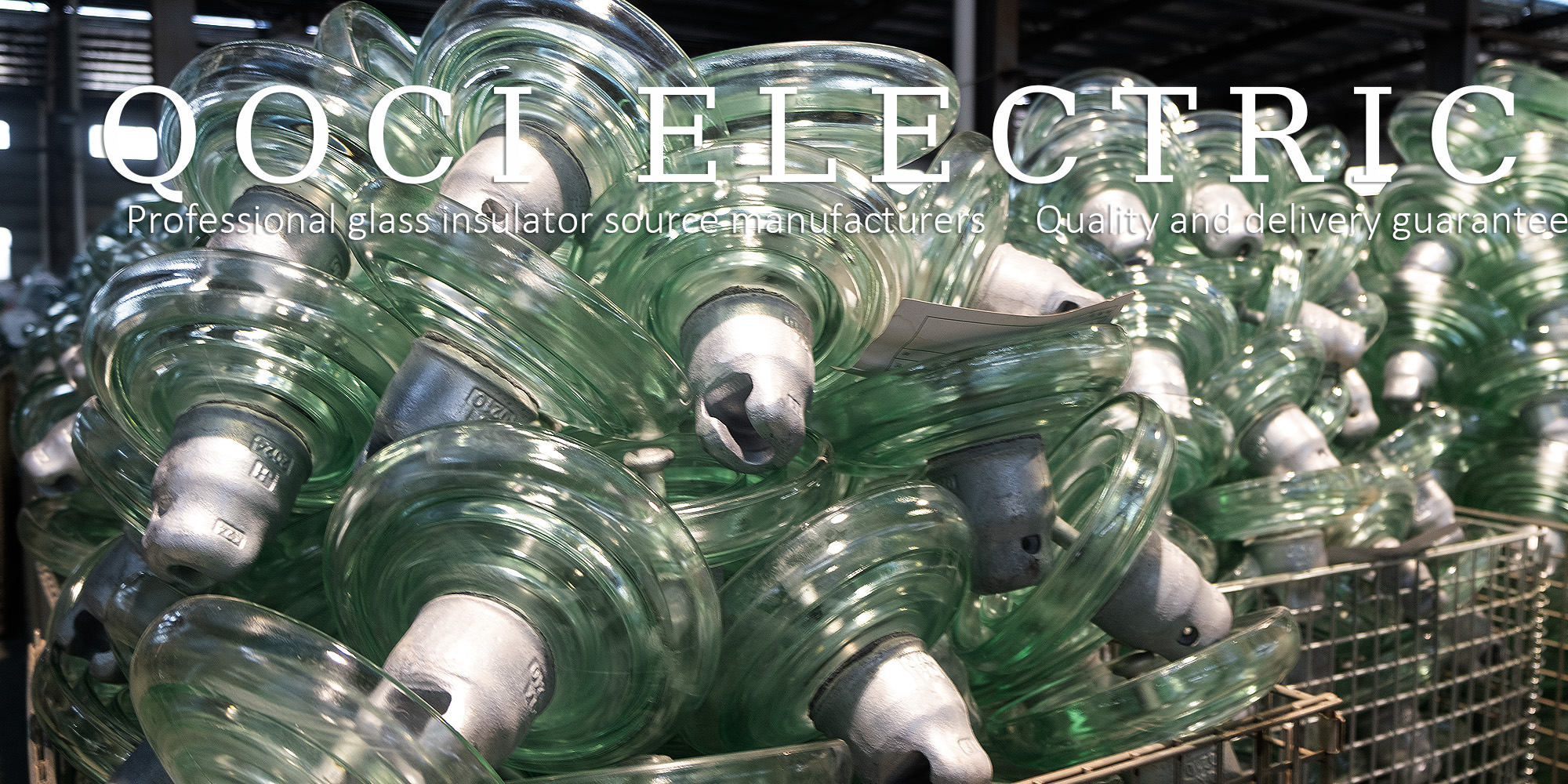

U210B glass insulator photo 2

Frequently Asked Questions

What does the "U210B" model name signify?
"U" refers to a Disc Suspension Insulator, "210" indicates a rated Mechanical Failing Load of 210kN, and "B" stands for the Ball and Socket type connection.
Which international standards do these insulators comply with?
The products are manufactured in accordance with IEC60383-1:1993, GB/T1001.1, and connection structures comply with GB/T4056-2008 (IEC60120:1984) and BS 3288 part III.
What is the standard locking pin used for the U210B?
Unless otherwise specified by the customer, an R-pin is typically used for the U210B model. W-pins are also available upon request.
Are these insulators suitable for polluted environments?
Yes. For heavy pollution areas, we strongly recommend adding a sacrificial zinc sleeve to the pin to protect against corrosion.
What material is used for the insulator cap and pin?
The cap is made of hot-dip galvanized nodular or ductile cast iron, and the pin is made of hot-dip galvanized forged steel to ensure long-term reliability.
What is the creepage distance of the U210B/170?
The U210B/170 insulator has a total creepage distance of 400mm, providing excellent insulation performance.
