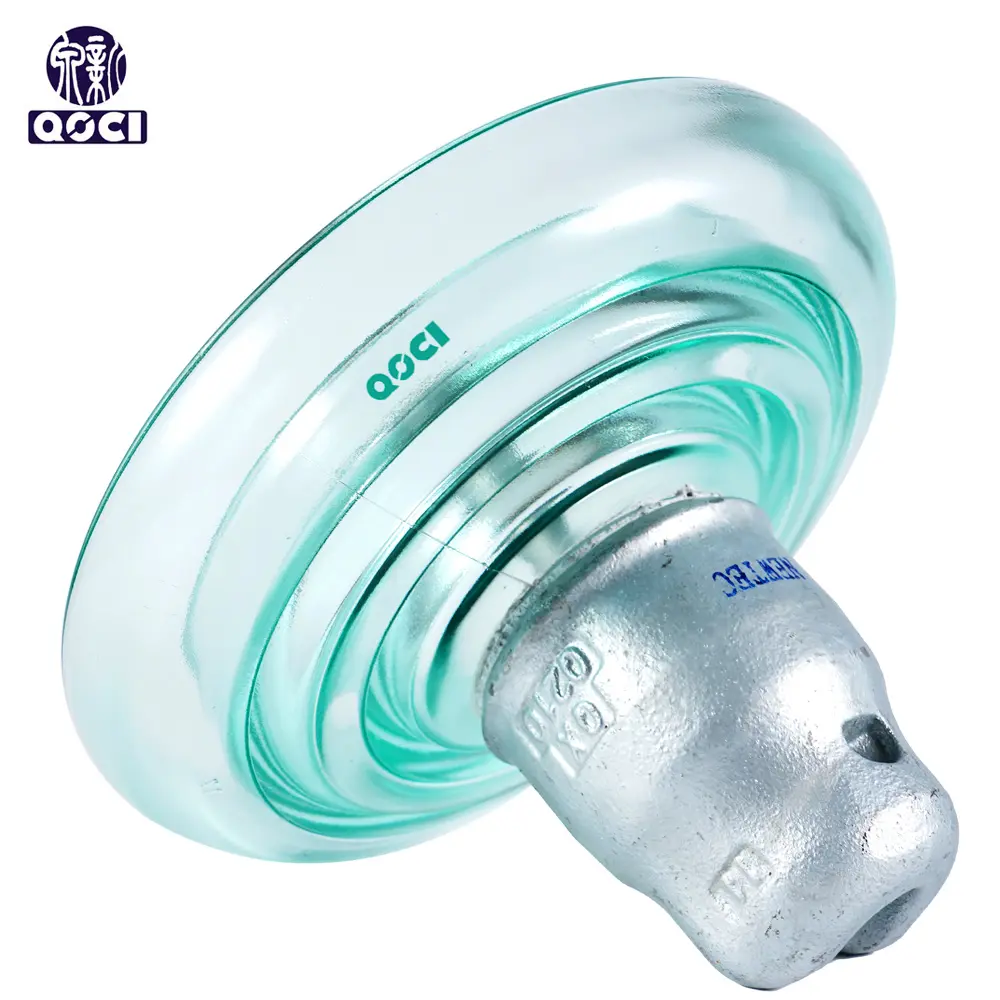

U160BM is a technically mature, safe, and reliable power component that plays an important role in ensuring the safe operation of power grids.
Core Application Areas:

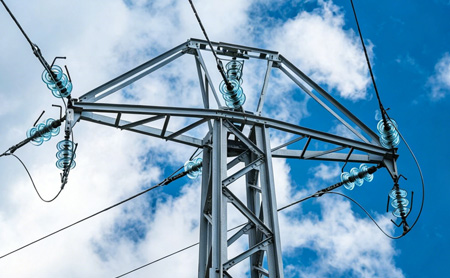

Overhead Transmission Lines:Â Primarily used in high-voltage and extra-high-voltage overhead lines to suspend or tension the conductors.
Substation Equipment:Â Also used within substations to provide insulation support for live equipment.
| U | Disc Suspension Insulator |
| 160 | Mechanical failing load of 160kN |
| B | Ball And Socket Type |

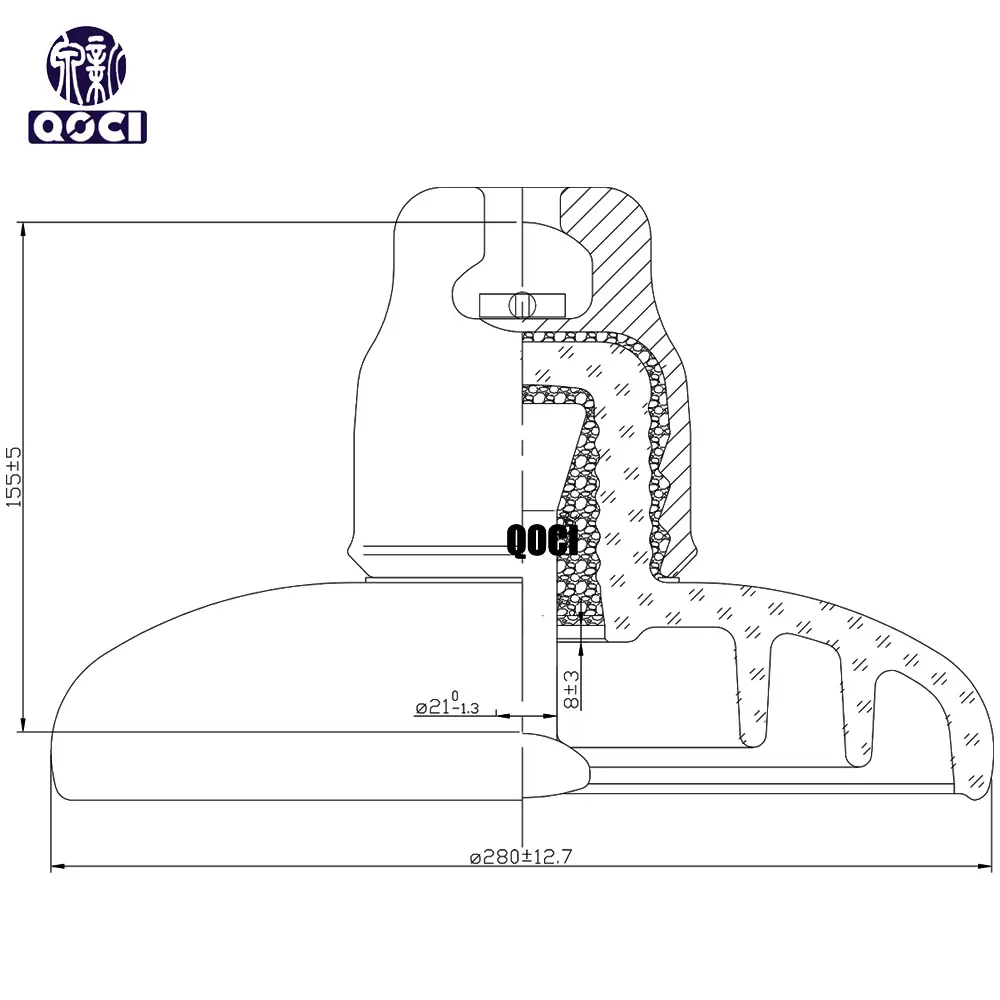

| M | Medium length steel pin, assembled to achieve a product structural height of 155mm. |
| Spacing (S) | 155mm |
| Diameter (D) | 280mm |
| Creepage distance (L) | 400mm |
| Socket coupling | 20mm |
| Mechanical values | |
| Mechanical failing load | 160kN |
| Mechanical residual strength | 128kN |
| Electrical Values | |
| Dry power frequency withstand voltage | 75kV |
| Wet power frequency withstand voltage | 45kV |
| Dry lightning impulse withstand voltage | 110kV |
| Power frequency puncture voltage | 130kV |
| RIV test voltage rms to ground / Maximum RIV at 1000 kHz | 10 kV / 50 μV |
| Corona visual lest P/C | 18/22 KV |
| Power frequency electric arc voltage | 0.12s/20kA |
| Net weight | 6.7kg |
| Carton Quantity | 3/6pcs |
