30KV Anchor Insulator String with Horn SparkPlugs

CTV 254 CTV 175 U70 120kn Glass Disc Insulator Multi-Storey Duplex Triple for High Voltage Transmission and Distribution Line

Send Inquiry

Product Description

Product segmentation diagram

Product segmentation diagram

Product Information

Technical Specifications of 30KV Anchor Insulator String with Horn Spark Plugs

The anchor insulator chain with horn spark gap components:
  • A galvanized trunnion yoke
  • A hot-dip galvanized ball eyelet
  • A hot-dip galvanized adjustable extension
  • Three insulator plates for 30kV each with a ball-joint eye housing cover and a base with ball joint (Made of hot-dip galvanized malleable cast iron)
  • A straight anchor clamp with conical wedge tightening (Aluminum alloy and hot-dip galvanized steel for bare Al/ Ac conductors 35/6 mm² to 95/15 mm²)
  • A simple cross spark gap
  • A ball-socket, supplied with bent pins
  • Two small, short stirrups
Key Characteristics:
  • Impulse withstand voltage: + and - lightning wave 1.2/50 us: 260kV
  • Withstand voltage at 50 Hz (Rain): 100kV
  • Mechanical breaking force: 70kN
  • Diameter: 175mm
  • Pitch between plates: 110mm
  • Vanishing line: 185mm

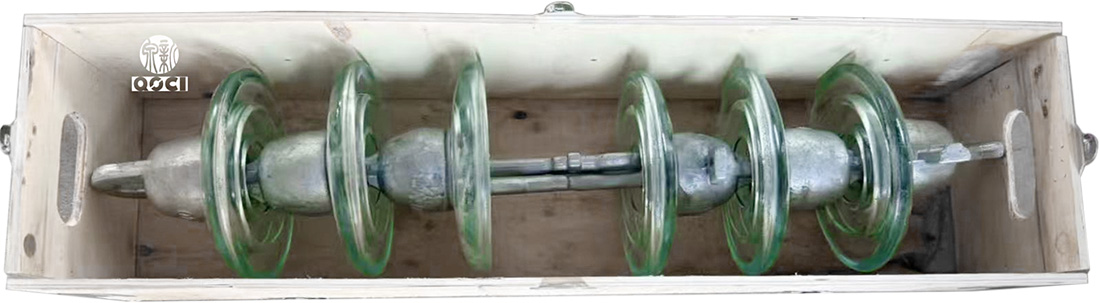

Packaging method

Packaging method

Product images

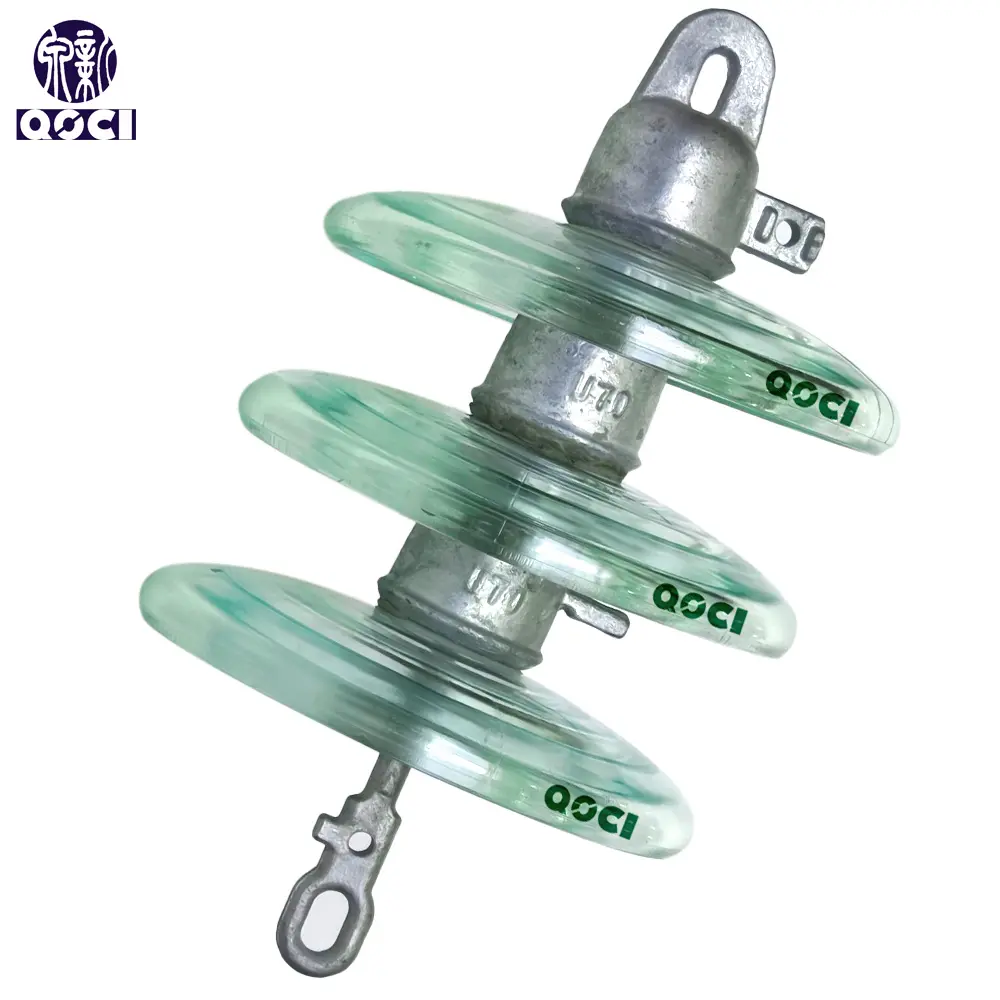

30KV Insulator String View 1

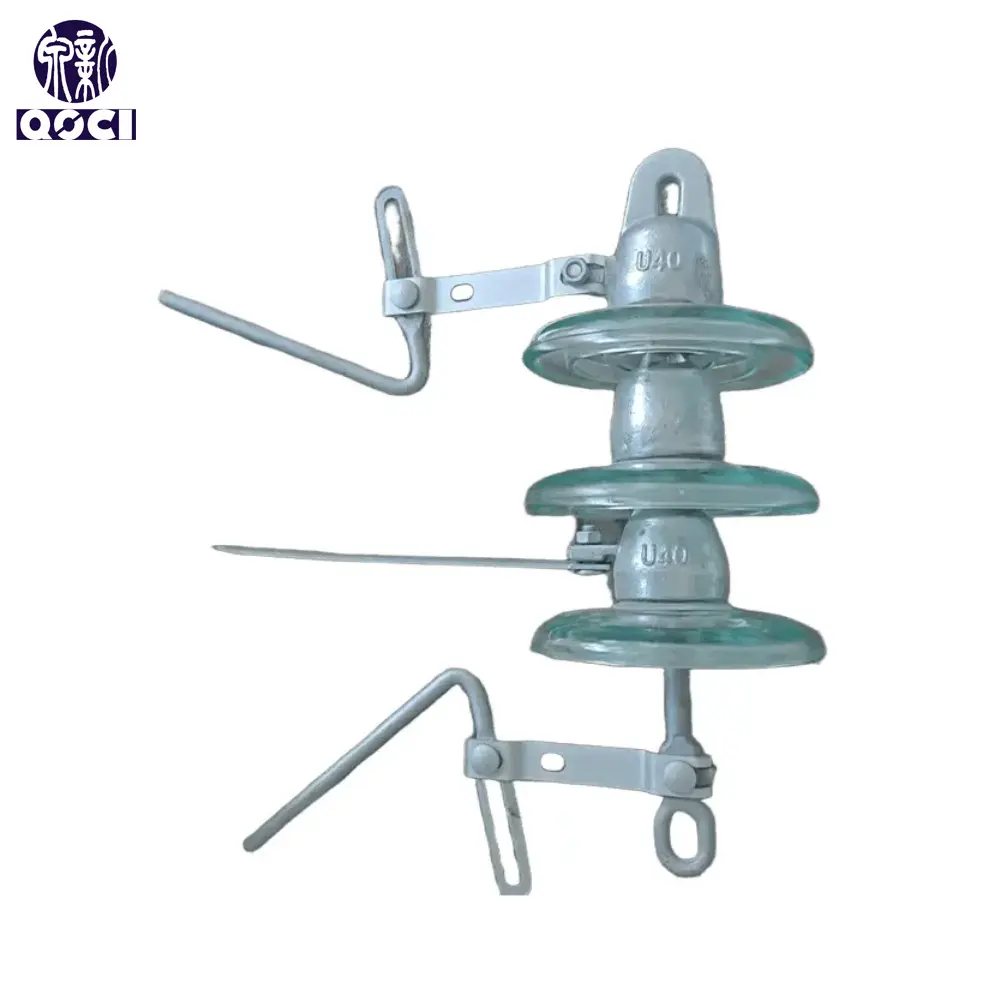

30KV Insulator String View 2

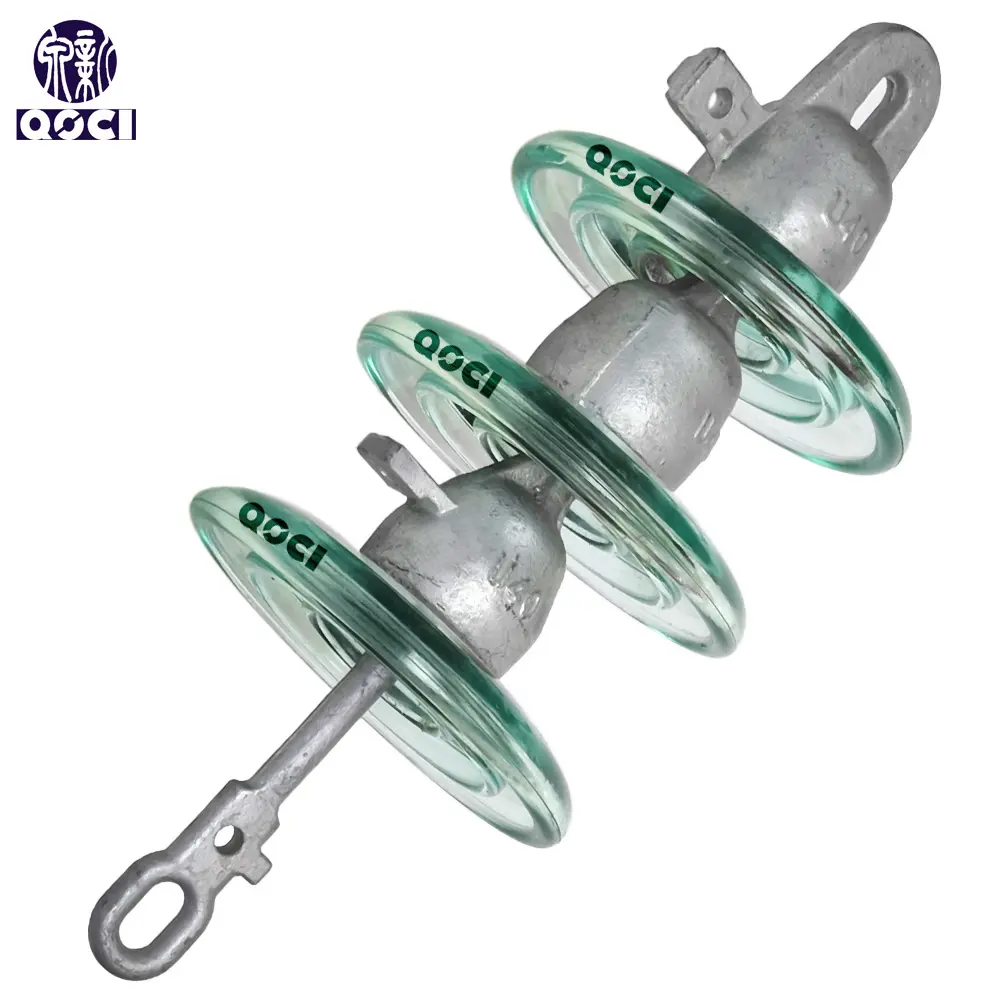

30KV Insulator String View 3

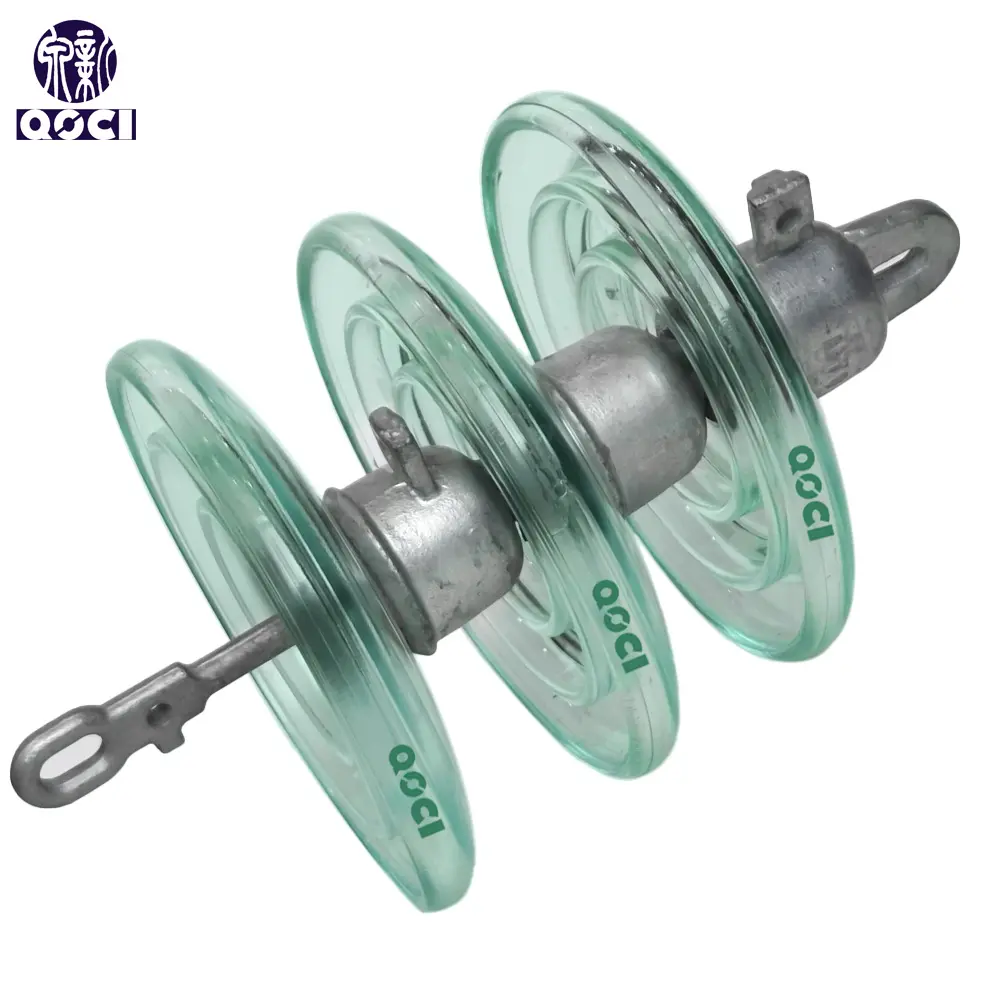

30KV Insulator String View 4

Frequently Asked Questions

What is the primary application of this 30KV Anchor Insulator String?
It is designed for securing and insulating bare Al/Ac conductors in 30kV overhead transmission lines, specifically featuring horn spark plugs for surge protection.
What materials are used for the metal components?
The components utilize hot-dip galvanized steel, galvanized trunnion yokes, and aluminum alloy for the anchor clamps to ensure high corrosion resistance and durability.
What is the mechanical strength rating of this insulator chain?
The assembly has a rated mechanical breaking force of 70kN, making it suitable for high-tension anchoring requirements.
What conductor sizes are compatible with the straight anchor clamp?
The anchor clamp is designed for bare conductors with cross-sections ranging from 35/6 mm² to 95/15 mm².
How does the horn spark gap function?
The spark gap serves as a protective device to divert overvoltages (like lightning strikes) away from the insulator plates, preventing electrical breakdown and damage.
What are the electrical withstand capabilities?
It is rated for an impulse withstand voltage of 260kV (1.2/50 us wave) and a 50 Hz withstand voltage of 100kV under wet (rain) conditions.
