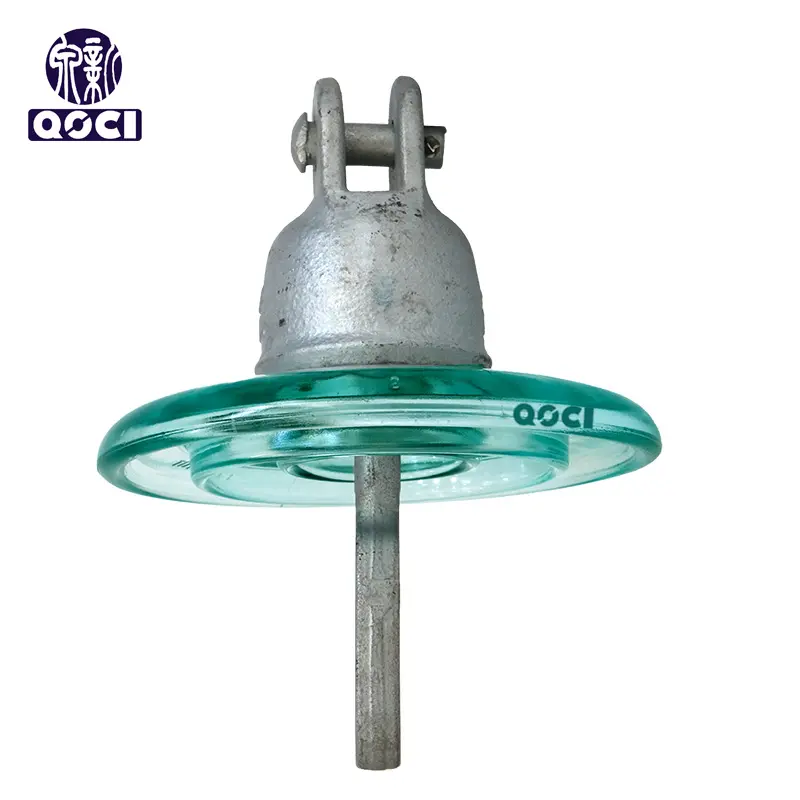

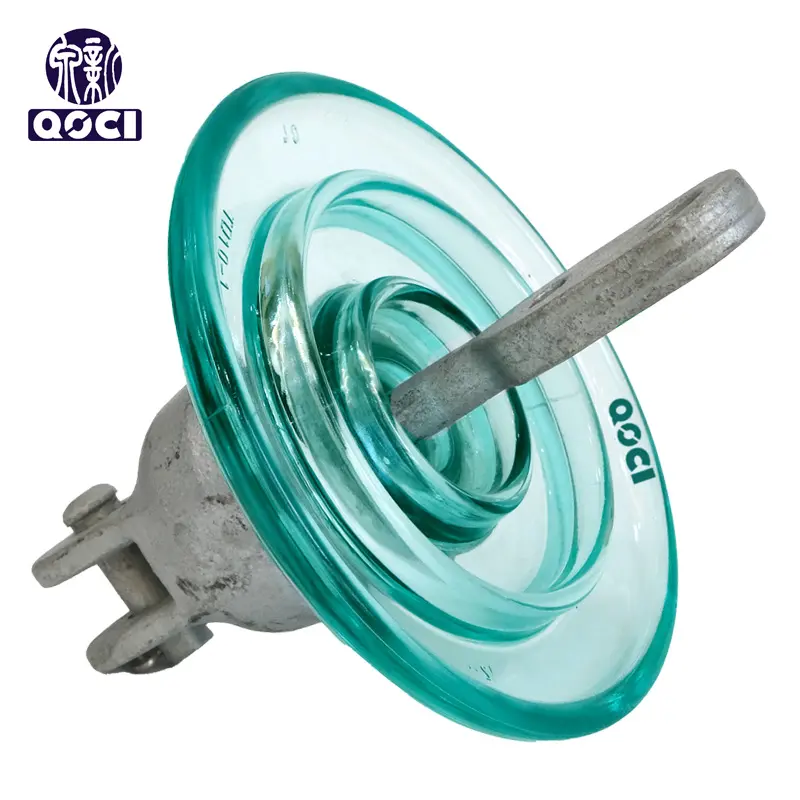

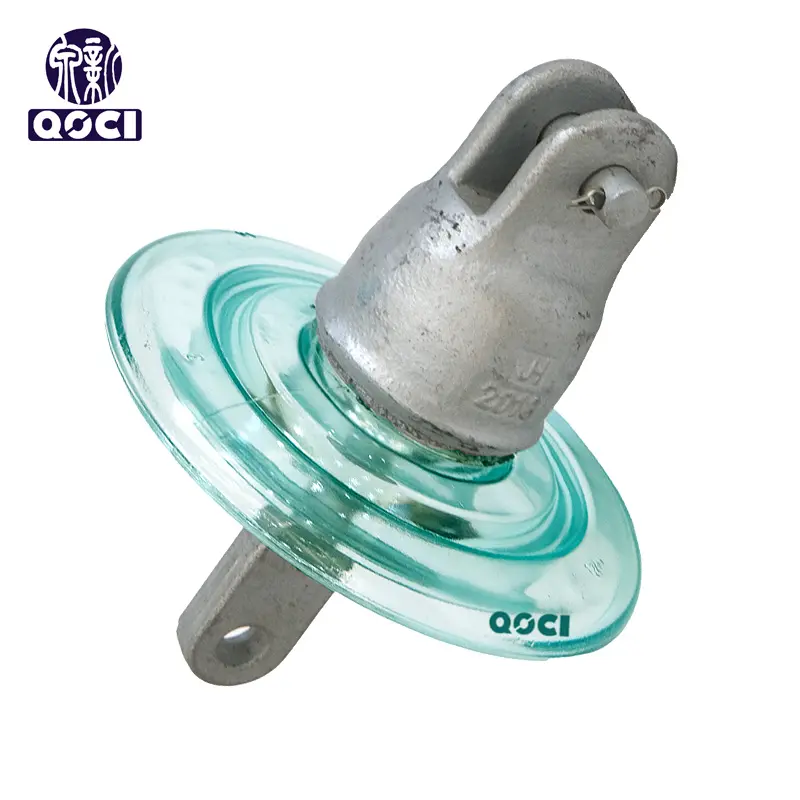

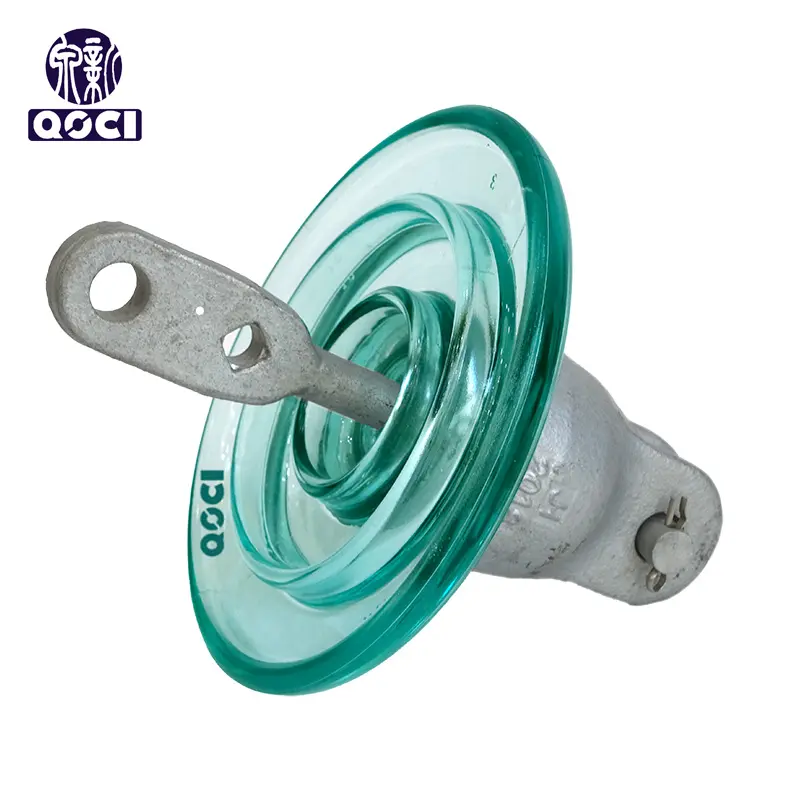

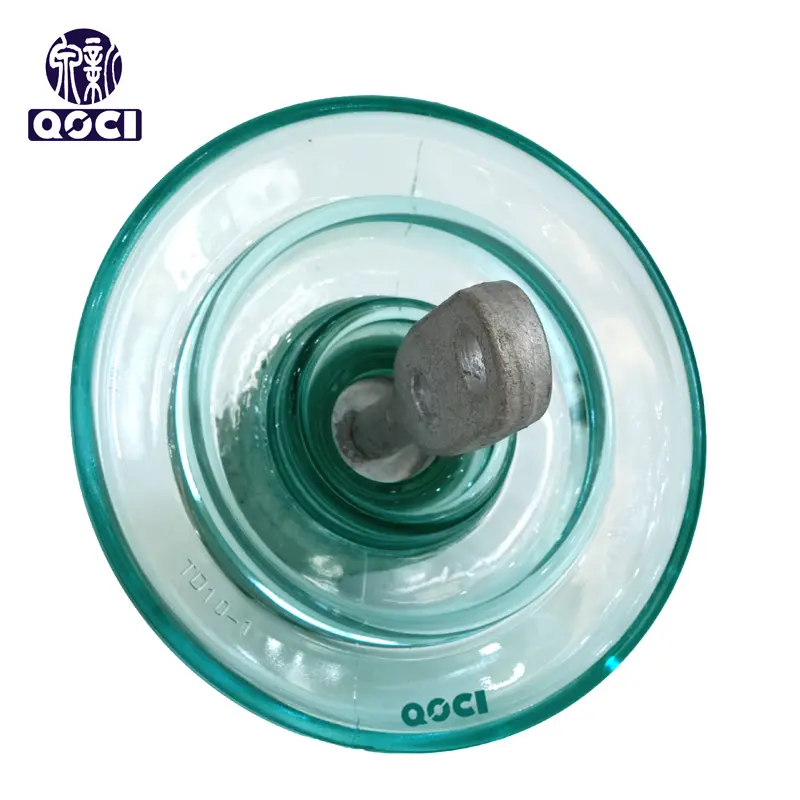

U70C Ground-wires Type Suspension Glass Insulator

Send Inquiry

Product Description

i

Product Information

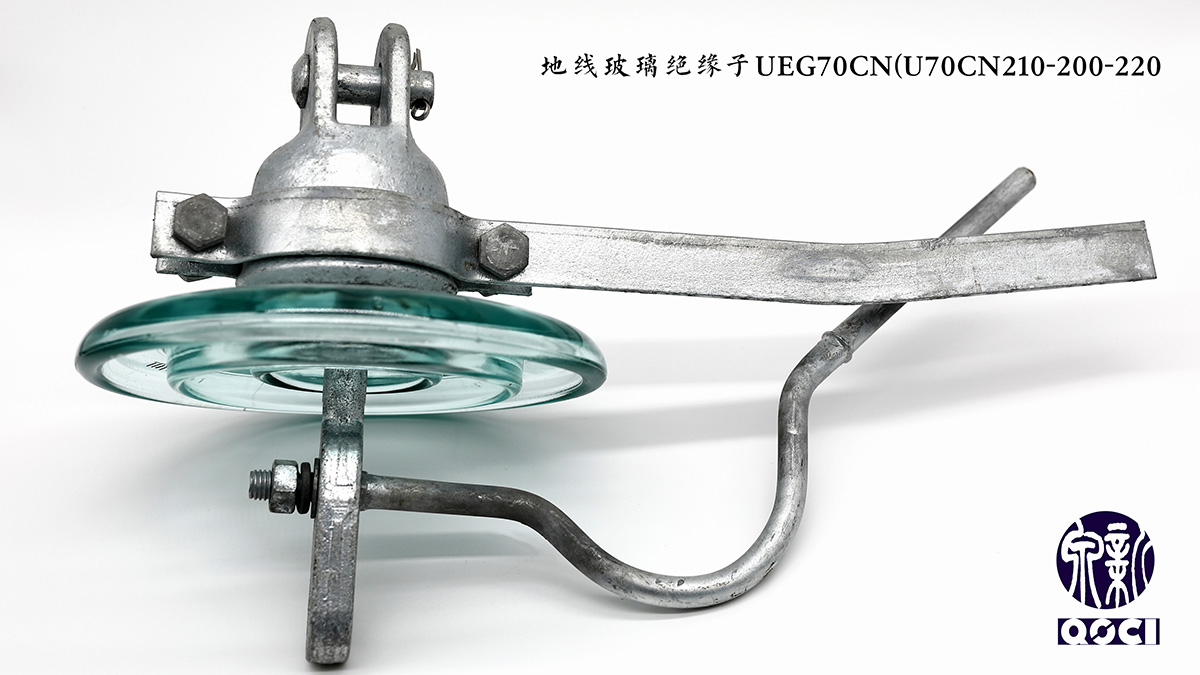

Product Information Insulator
✎

Product Drawing

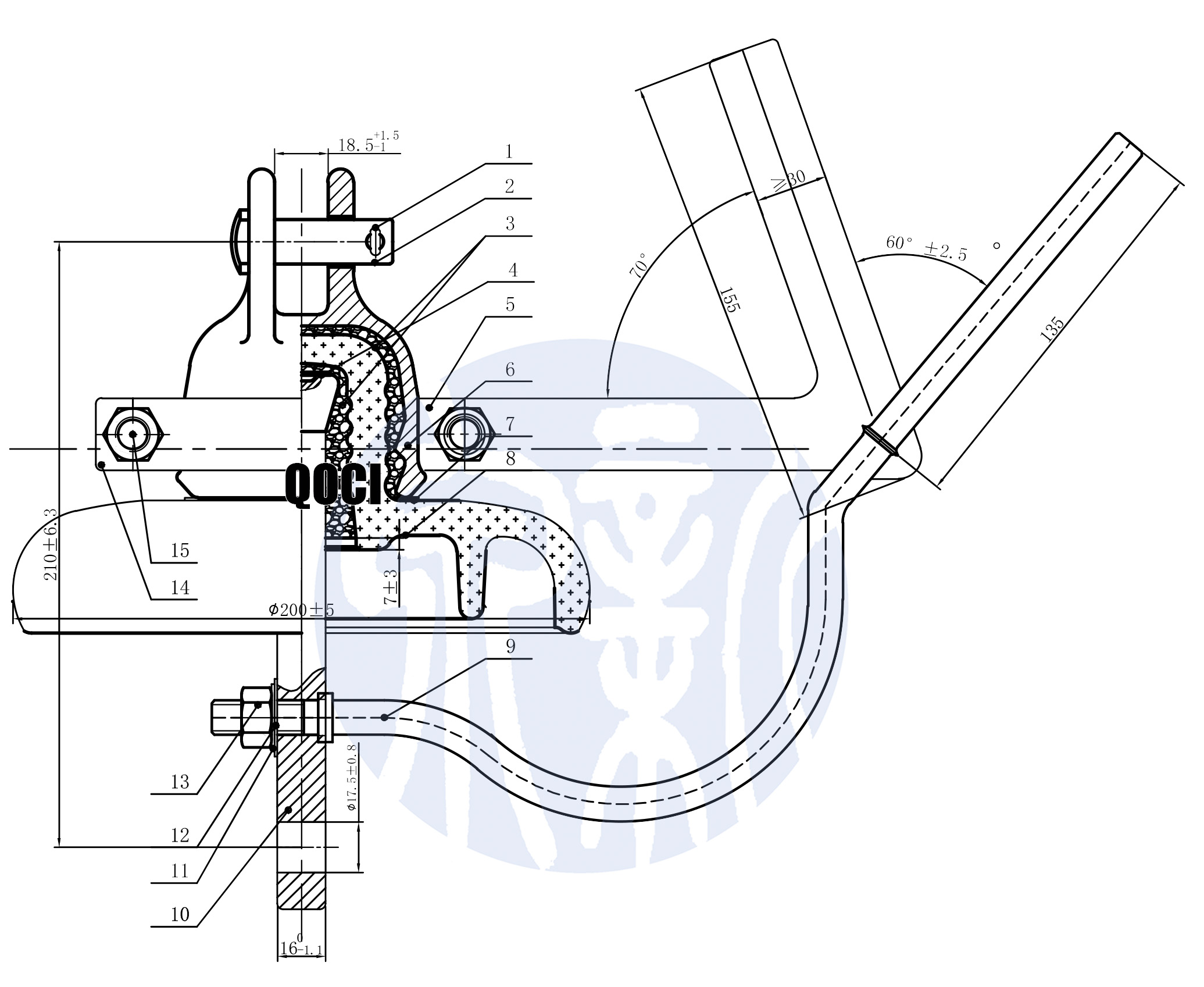

Product Technical Drawing
⚙

Product Parameters

IEC Designation Min. Mechanical Failing Load (kN) Dimensions (mm) Socket Coupling (mm) Suspending Modes Power Frequency Discharge Voltage (kV) Extinguished Arc Current (A) Electrode Performance (Withstand Arc) Weight (kg)
D (Dia) H (Spacing) L (Creepage) Max Min Inductance Capacitance Current (kA) Time (S) Freq
U70C 70 200 210 220 16C Suspension 30 8 35 20 10 0.2 2 4.5
U70CN 70 200 210 220 16C Tension 30 8 35 20 10 0.2 2 4.5
U100C 100 200 210 220 16C Suspension 30 8 35 20 10 0.2 2 4.5
U100CN 100 200 210 220 16C Tension 30 8 35 20 10 0.2 2 4.5
U120C 120 200 210 220 16C Suspension 30 8 35 20 10 0.2 2 4.5
U120CN 120 200 210 220 16C Tension 30 8 35 20 10 0.2 2 4.5
?

Frequently Asked Questions

What is the difference between the "C" and "CN" designations?
The primary difference lies in the suspending modes. Models with the "C" designation are typically used for suspension, while "CN" models are designed for tension applications.
What is the maximum mechanical failing load available?
In this product range, the mechanical failing load ranges from 70kN for the U70 series up to 120kN for the U120 series.
What is the standard creepage distance for these insulators?
All models listed in the parameters table feature a nominal creepage distance (L) of 220mm.
What type of socket coupling is used?
These insulators use a standard 16C socket coupling, ensuring compatibility with standard power line hardware.
How do these insulators perform under arc current?
The insulators are tested for electrode performance withstanding a power frequency current of 10kA for a duration of 0.2 seconds.
What is the nominal weight of each unit?
The weight for these units is consistently approximately 4.5kg per piece, making them manageable for installation while maintaining high strength.
