China U70BLP (146/320/550) Anti-pollution Glass Insulator Supplier, Suppliers

The core function of the U70BP anti-fouling glass insulator is to prevent "pollution flashover": During foggy or light rainy weather, contamination layers such as industrial dust and salt particles become moistened and form a conductive path on the insulator's surface. This can cause the high-voltage current to break down the air and generate intense arcing — an event known as a "pollution flashover" accident. The U70BLP significantly increases the creepage distance (i.e., the length of the leakage path for current along the surface), making it much more difficult for a continuous conductive channel to form on the insulator surface under high humidity conditions. As a result, it greatly enhances operational safety in harsh weather environments.


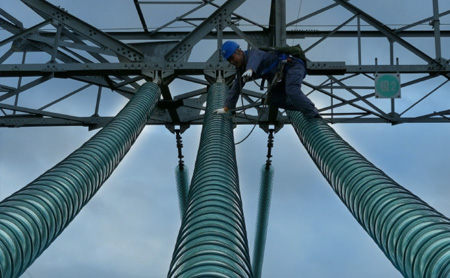

Product Description

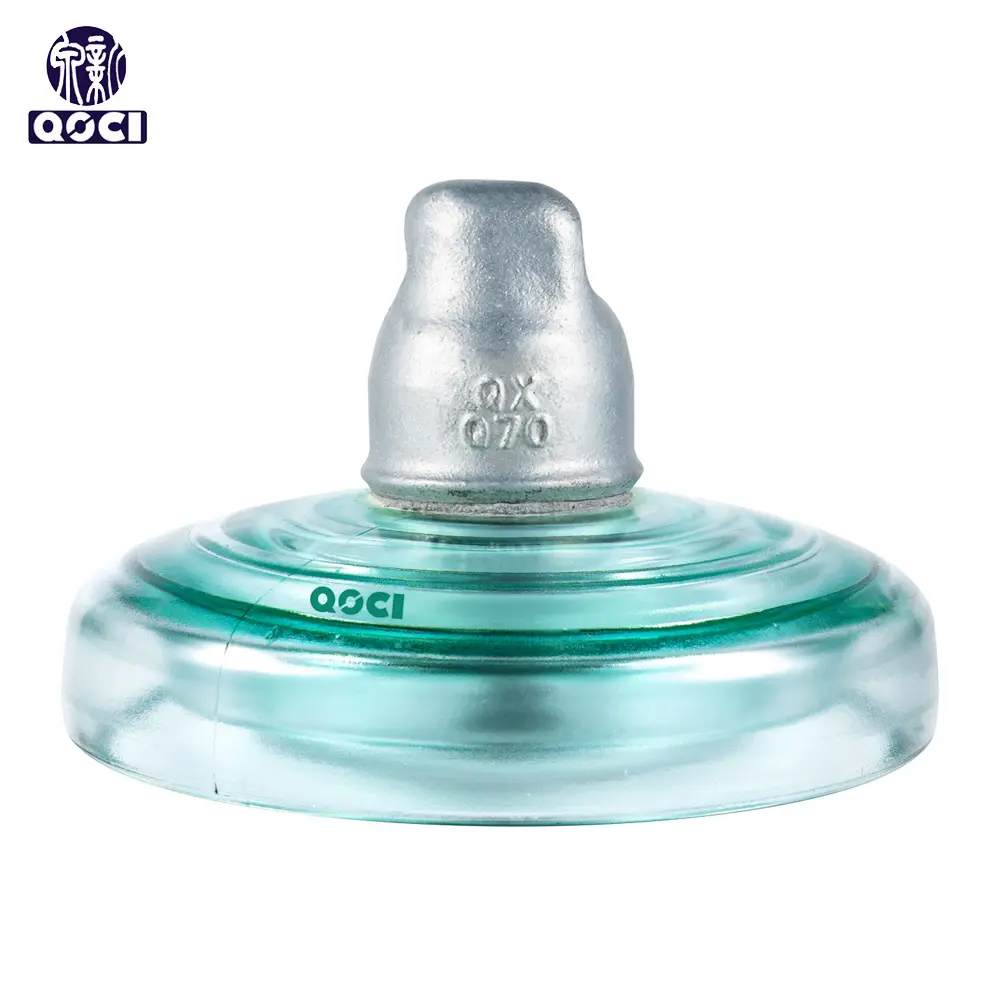

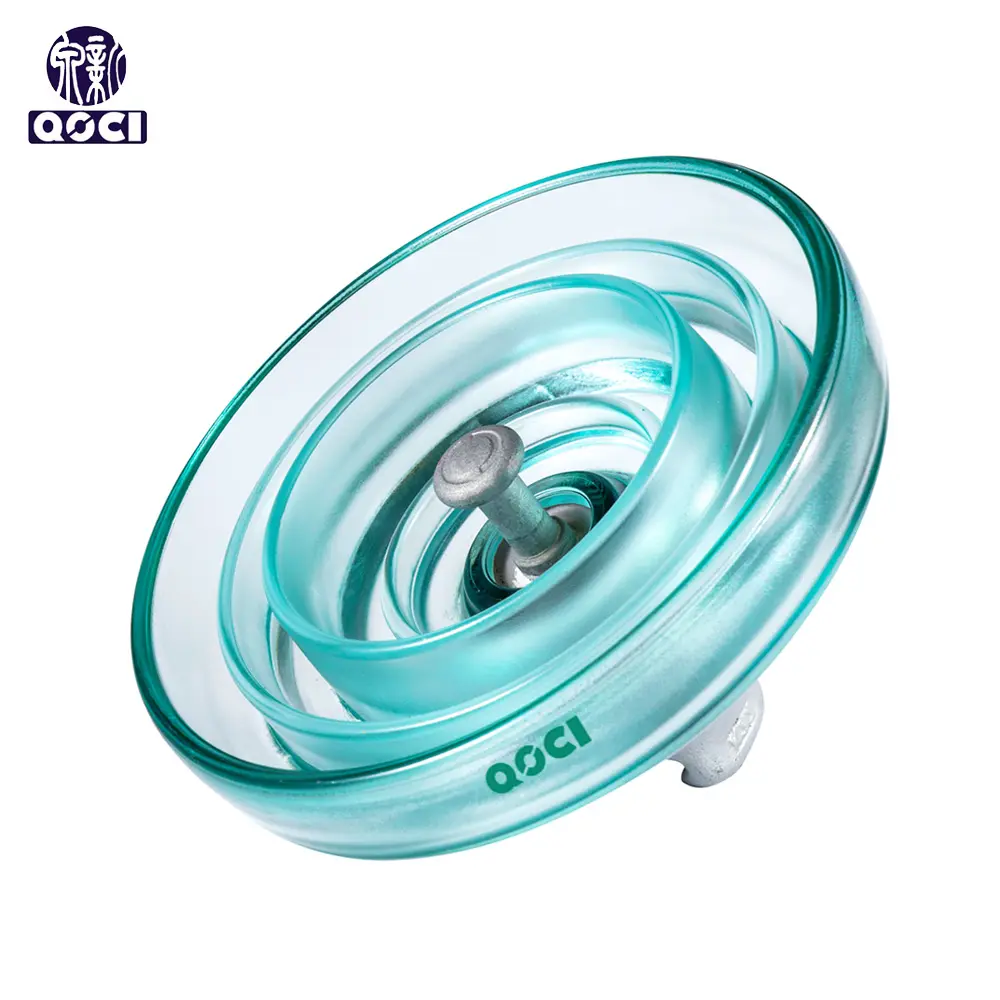

Product Information: U70BLP

U: Disc Suspension
70: 70kN Load
B: Ball & Socket
L: 146mm Height
P: Anti-Pollution
Standard Designation IEC Stand: U70BLP
Product Type Disc Suspension Insulator (Anti-Pollution)
Coupling Type Ball And Socket Type
Structural Height 146mm (Assembled with Long steel pin)
U70BLP Product Details

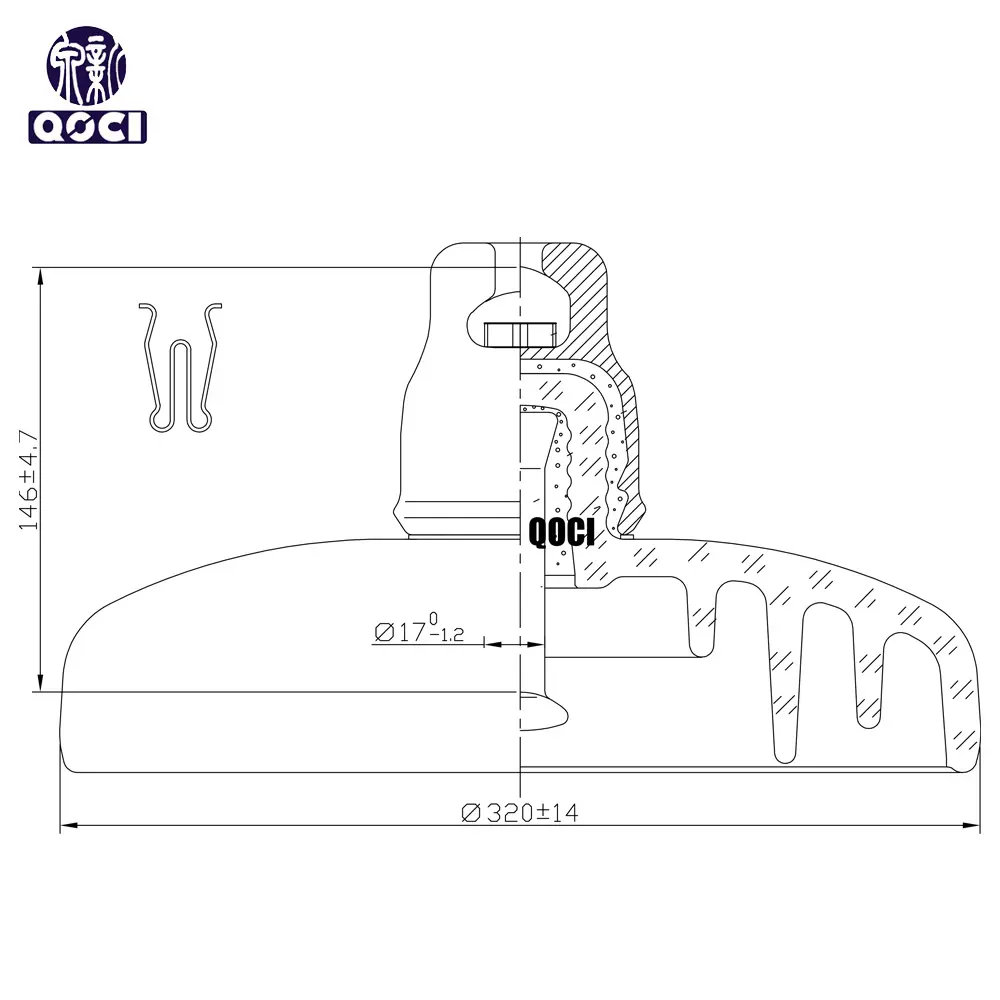

Dimensional Data

Spacing (S) 146mm
Diameter (D) 320mm
Creepage distance (L) 550mm
Socket coupling 16

Technical Performance

Mechanical Values

Mechanical failing load 70kN
Mechanical residual strength 56kN

Electrical Values

Wet power frequency withstand voltage 55kV
Dry lightning impulse withstand voltage 140kV
Power frequency puncture voltage 130kV

Radio-influence Voltage & Standards

RIV test voltage rms to ground 10 kV
Maximum RIV at 1000 kHz 50 μV
Corona visual lest P/C 18/22 KV
Power frequency electric arc voltage 0.12s / 20kA
Industry Standard IEC60383-1:1993, MOD / GB/T1001.1

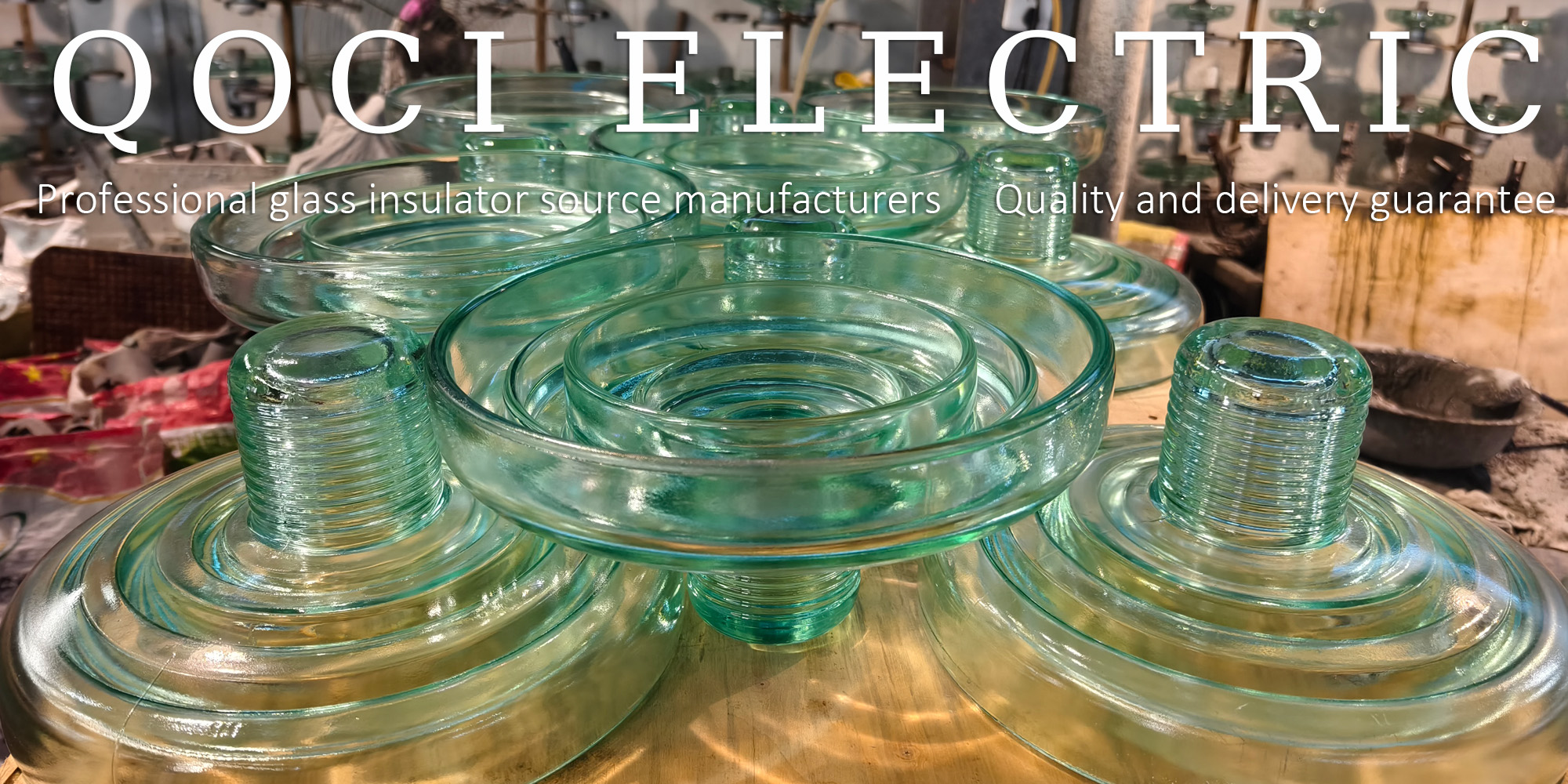

Industry Standard Shell

Packing Information

Net weight 9.2kg
Carton Quantity 3 pcs
U70BP Packing

Frequently Asked Questions (FAQ)

What is the main application of the U70BLP insulator?
The U70BLP is a disc suspension insulator specifically designed for anti-pollution environments, providing reliable insulation in areas with high contamination.
What does the "70" in U70BLP signify?
The number "70" represents the mechanical failing load of the insulator, which is 70kN.
What is the creepage distance of this product?
This insulator features a high creepage distance of 550mm, making it ideal for high-voltage protection in adverse conditions.
Which international standards does this insulator follow?
It is manufactured in accordance with IEC60383-1:1993 and GB/T1001.1 standards to ensure global quality compliance.
How is the U70BLP typically packed for shipping?
The units have a net weight of 9.2kg each and are generally packed with 3 pieces per carton for safe transportation.
What are the electrical withstand voltages for this unit?
The insulator has a wet power frequency withstand voltage of 55kV and a dry lightning impulse withstand voltage of 140kV.
