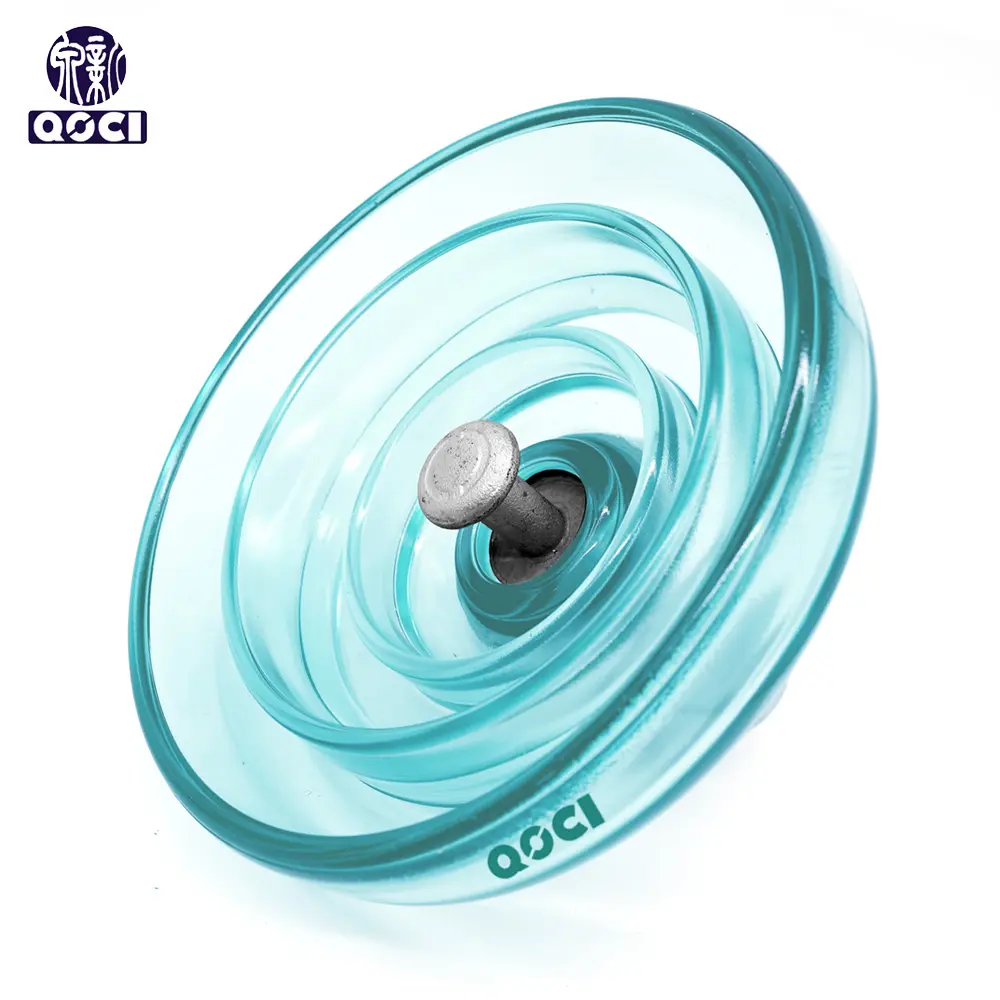

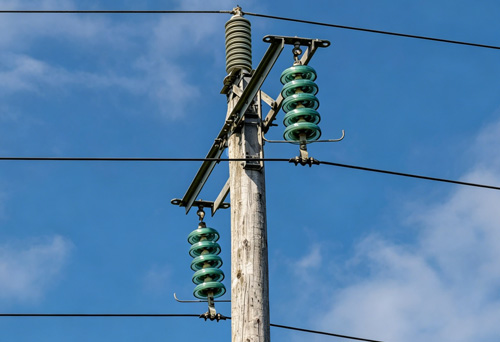

The core function of the U70BP anti-fouling glass insulator is to prevent "pollution flashover": During foggy or light rainy weather, contamination layers such as industrial dust and salt particles become moistened and form a conductive path on the insulator's surface. This can cause the high-voltage current to break down the air and generate intense arcing — an event known as a "pollution flashover" accident. The U70BSP significantly increases the creepage distance (i.e., the length of the leakage path for current along the surface), making it much more difficult for a continuous conductive channel to form on the insulator surface under high humidity conditions. As a result, it greatly enhances operational safety in harsh weather environments.


Product Description

Product Information

IEC StandardU70BSP
TypeDisc Suspension Insulator (U)
Load Rating70kN Mechanical Load
ConnectionBall and Socket Type (B)
StructureShort Pin, 127mm Height (S)
ApplicationAnti-Pollution Type (P)

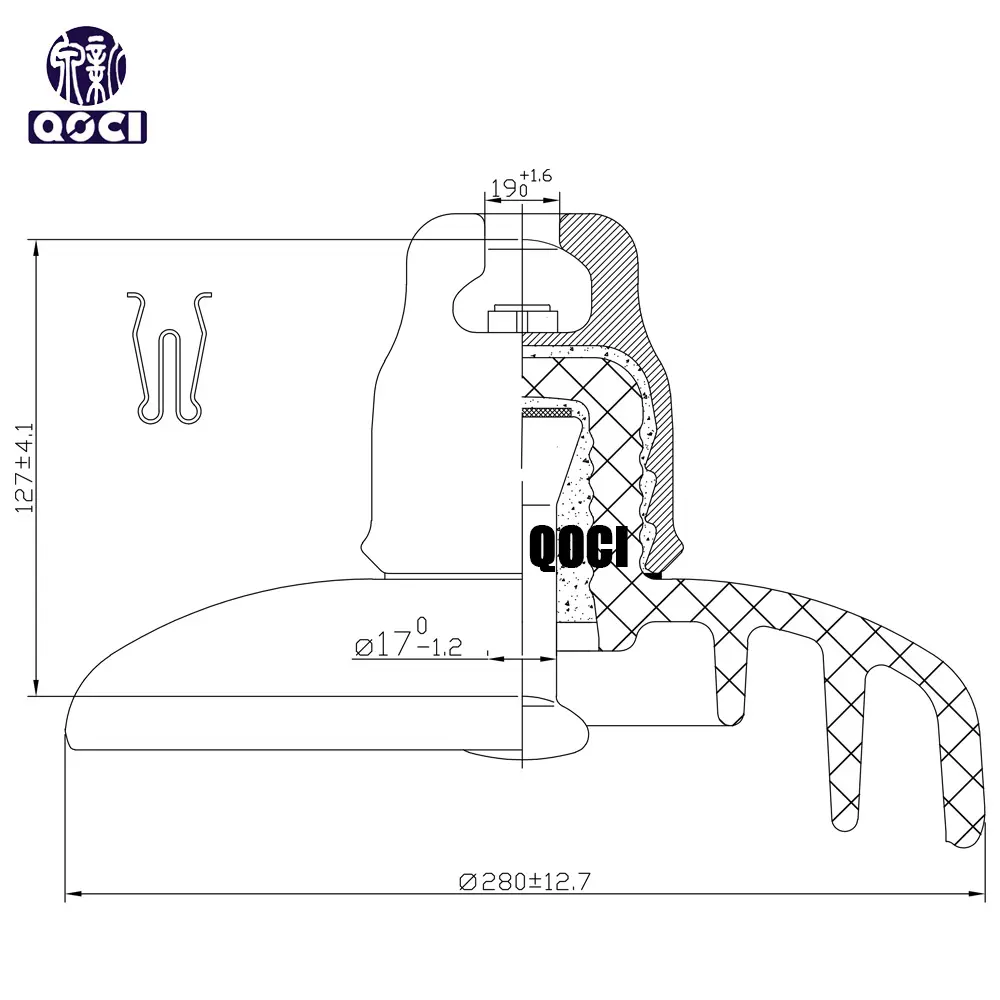

Technical Drawing of Disc Suspension Insulator

Dimensional Data

Spacing (S)127 mm
Diameter (D)280 mm
Creepage Distance (L)450 mm
Socket Coupling16A

Technical Performance

Mechanical Failing Load70 kN
Mechanical Residual Strength56 kN
Wet Power Frequency Withstand50 kV
Dry Lightning Impulse Withstand125 kV
Power Frequency Puncture Voltage130 kV

Radio-influence & Arc Characteristics

RIV Test Voltage (rms to ground)10 kV
Maximum RIV at 1000 kHz50 μV
Corona Visual Test (P/C)18/22 kV
Power Frequency Electric Arc Voltage0.12s / 20kA

Packing & Standards

Net Weight5.7 kg
Quantity per Carton5 pcs / 6 pcs
ComplianceIEC60383-1:1993, GB/T1001.1

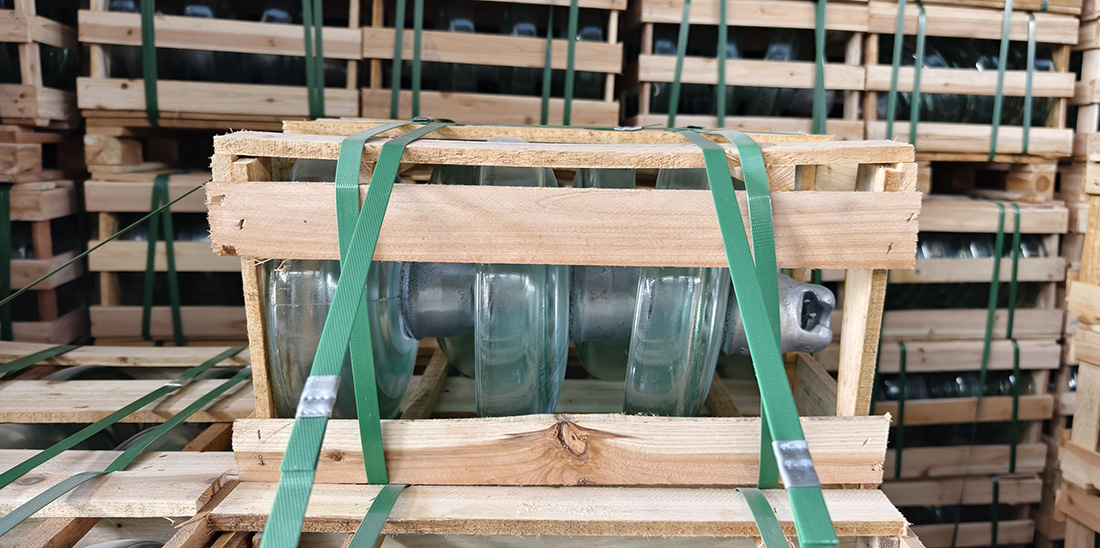

Packaging of U70BP Insulator

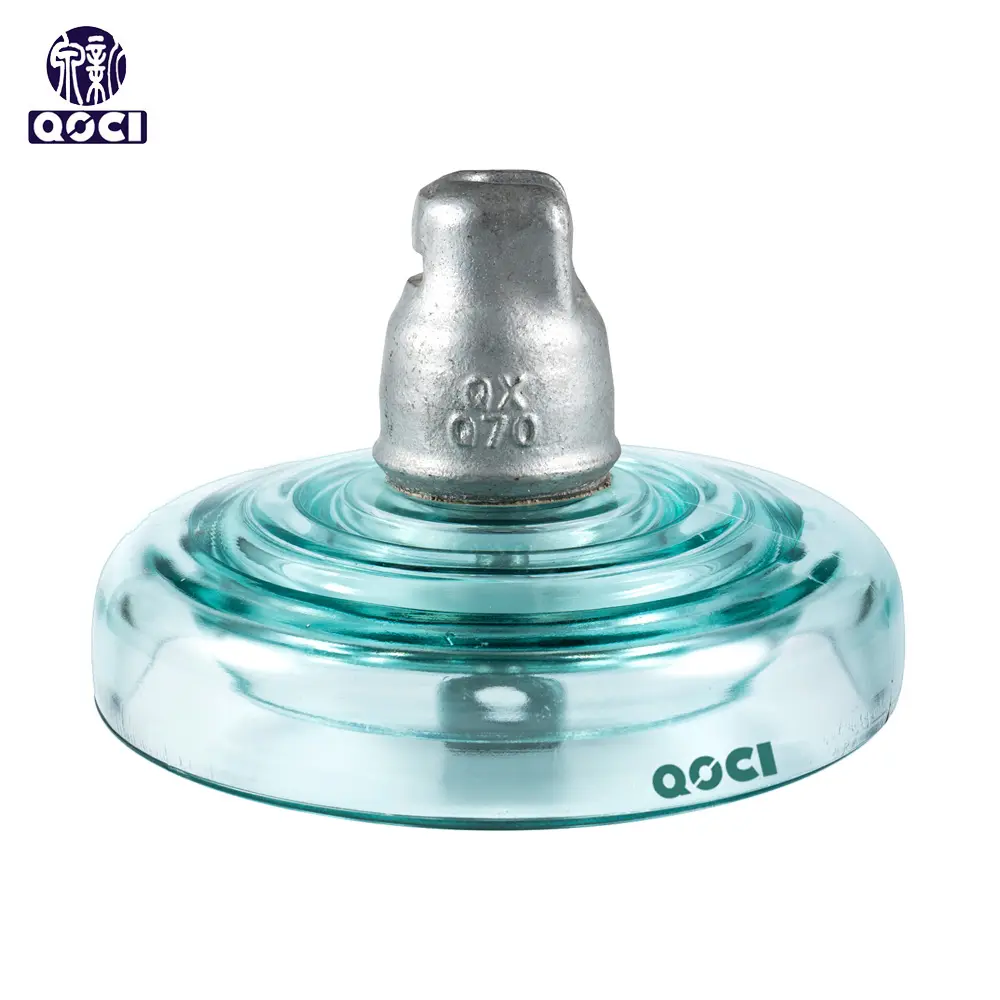

Industry Standard Product View

Frequently Asked Questions

What does the U70BSP code stand for?
The code indicates a Disc Suspension Insulator (U) with a 70kN mechanical load rating, Ball and Socket connection (B), a shorter pin for a 127mm structural height (S), and an Anti-Pollution design (P).
What is the creepage distance of this insulator?
The U70BSP model features a creepage distance of 450mm, making it suitable for environments requiring higher insulation performance.
What are the electrical withstand capabilities?
It has a wet power frequency withstand voltage of 50kV and a dry lightning impulse withstand voltage of 125kV.
Is this product manufactured to international standards?
Yes, the product is manufactured in strict accordance with IEC60383-1:1993 and GB/T1001.1 standards.
What is the mechanical strength of the U70BSP?
It has a mechanical failing load of 70kN and maintains a mechanical residual strength of 56kN.
How is the product packaged for shipment?
The units are typically packed in cartons of 5 to 6 pieces, with each individual insulator having a net weight of approximately 5.7kg.
