The core function of the U120BP anti-fouling glass insulator is to prevent "pollution flashover": During foggy or light rainy weather, contamination layers such as industrial dust and salt particles become moistened and form a conductive path on the insulator's surface. This can cause the high-voltage current to break down the air and generate intense arcing — an event known as a "pollution flashover" accident. The U120BLP significantly increases the creepage distance (i.e., the length of the leakage path for current along the surface), making it much more difficult for a continuous conductive channel to form on the insulator surface under high humidity conditions. As a result, it greatly enhances operational safety in harsh weather environments.

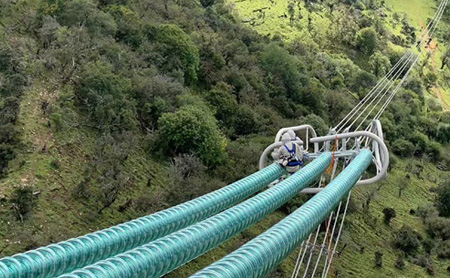

U120BP disc glass insulator -1.jpg

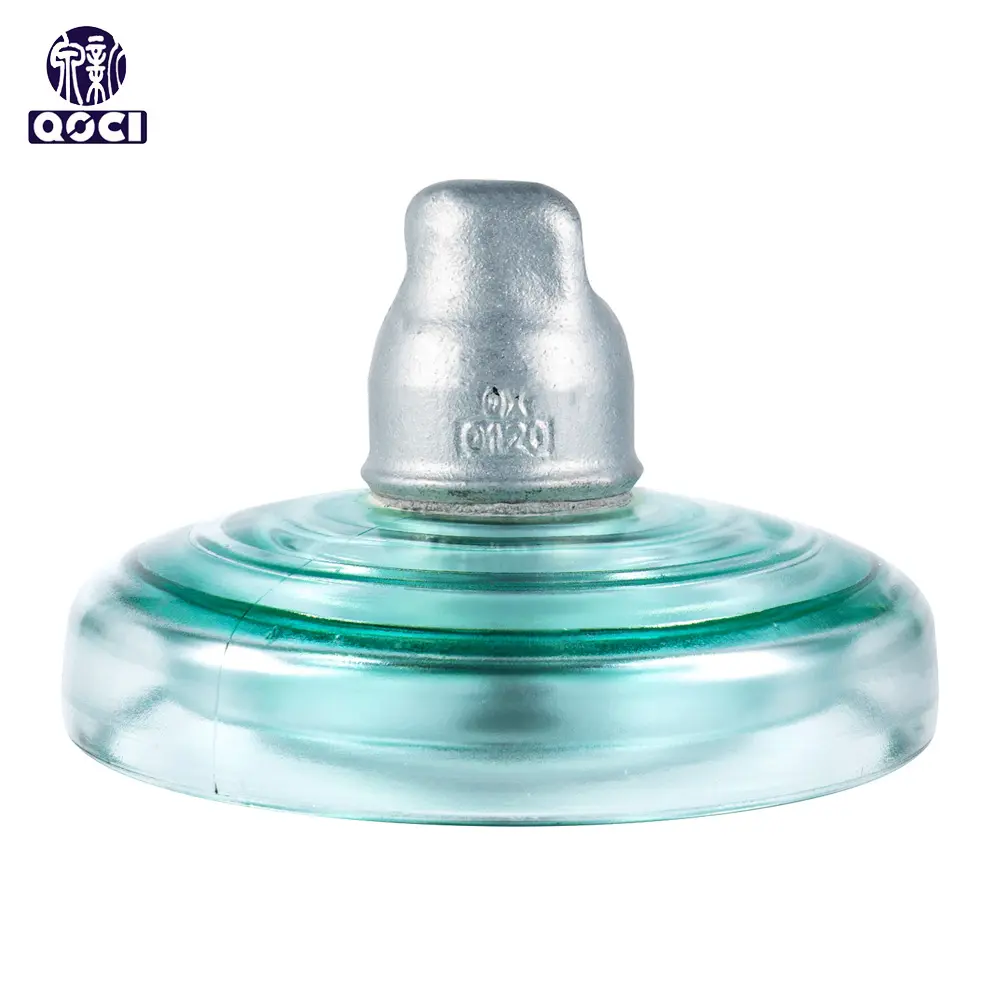

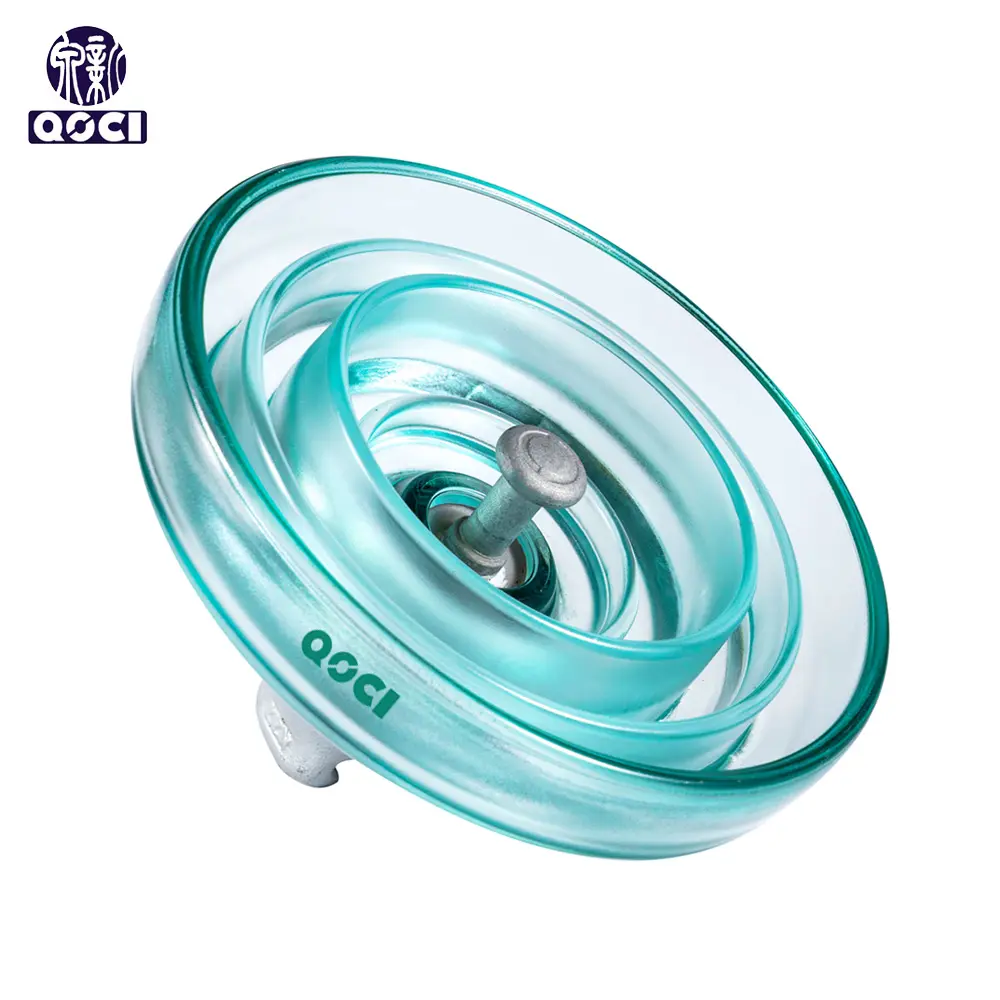

Product Description

ℹ️ Product Information
IEC Standard: U120BLP
U Disc Suspension Insulator
120 Mechanical failing load of 120kN
B Ball And Socket Type
L Longer steel pin; Assembled to achieve a product structural height of 146mm
P For Anti-Pollution type

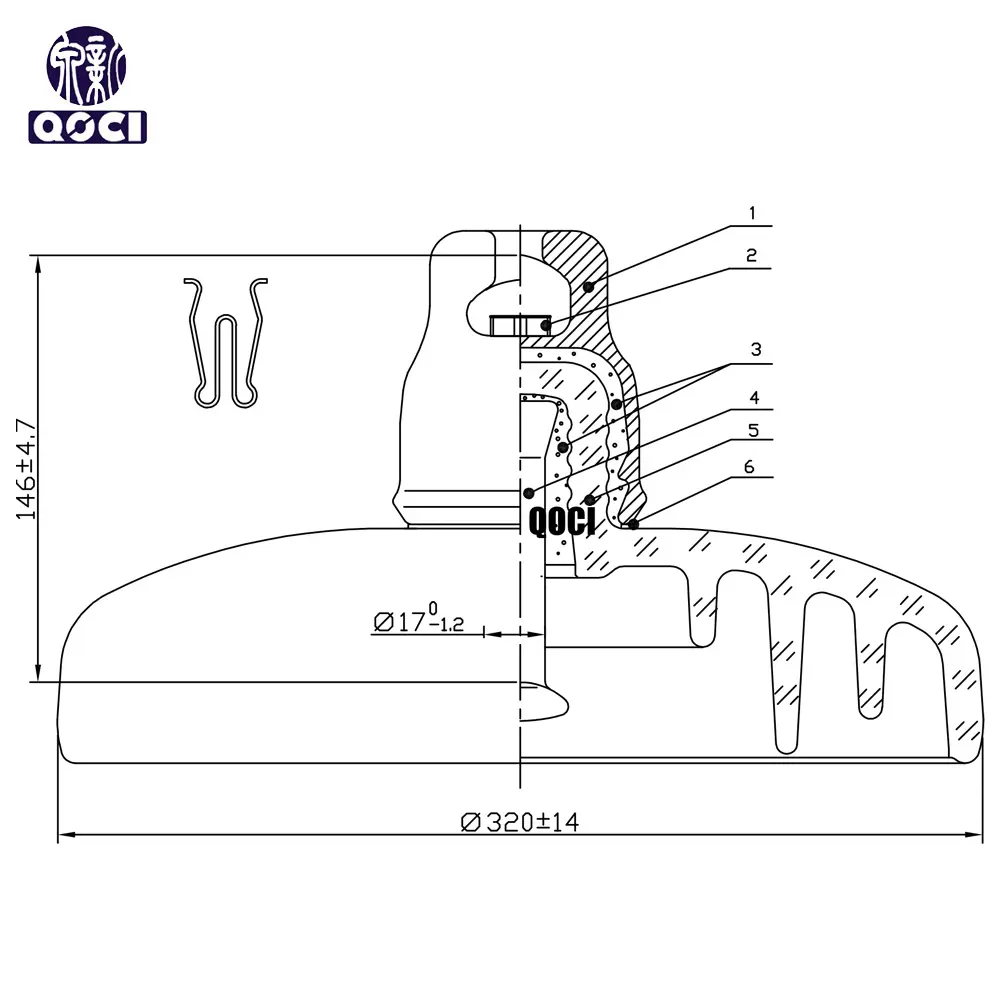

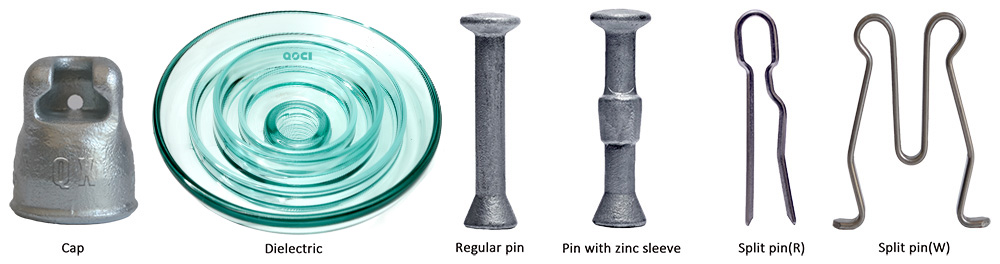

Disc Suspension Insulator Detail
📏 Dimensional Data
Spacing (S) 146mm
Diameter (D) 320mm
Creepage distance (L) 550mm
Socket coupling 16
⚙️ Mechanical Values
Mechanical failing load 120kN
Mechanical residual strength 96kN
Electrical Values
Wet power frequency withstand voltage 55kV
Dry lightning impulse withstand voltage 140kV
Power frequency puncture voltage 130kV
📡 Radio-influence Voltage
RIV test voltage rms to ground 10 kV
Maximum RIV at 1000 kHz 50 μV
Corona visual test P/C 18/22 KV
Power frequency electric arc voltage 0.12s/20kA
📦 Packing Information
Net weight 9.2kg
Carton Quantity 3pcs
📜 Industry Standard(s)

Manufactured accordance with IEC60383-1:1993 / GB/T1001.1

Packing Details
Standard Certificate
Frequently Asked Questions
1. What does the "U120BLP" designation stand for?
It follows the IEC standard where 'U' denotes a Disc Suspension Insulator, '120' refers to the 120kN mechanical failing load, 'B' is for Ball and Socket type, 'L' indicates a longer steel pin for a 146mm structural height, and 'P' signifies it is designed for anti-pollution environments.
2. What are the main dimensions of this insulator?
The insulator has a spacing (S) of 146mm, a diameter (D) of 320mm, and a total creepage distance of 550mm.
3. What is the electrical performance under wet conditions?
The wet power frequency withstand voltage for this model is rated at 55kV.
4. How is the product typically packed for shipping?
Each unit has a net weight of approximately 9.2kg. They are typically packed with 3 pieces per carton for secure transport.
5. Is this insulator suitable for high-pollution areas?
Yes, the "P" in the model name (U120BLP) specifically indicates that it is an Anti-Pollution type, designed to maintain performance in contaminated environments.
6. Which international standards does this product comply with?
This product is manufactured in strict accordance with IEC60383-1:1993 and GB/T1001.1 industry standards.
