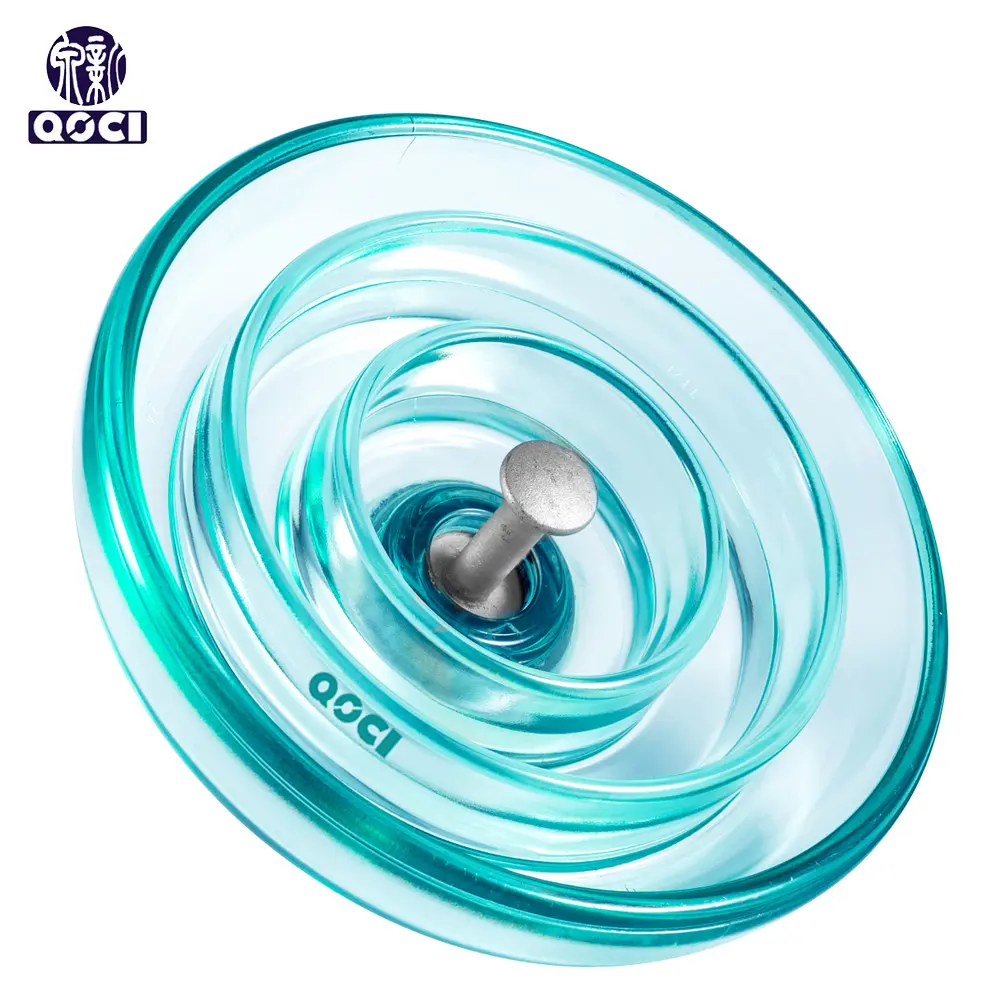

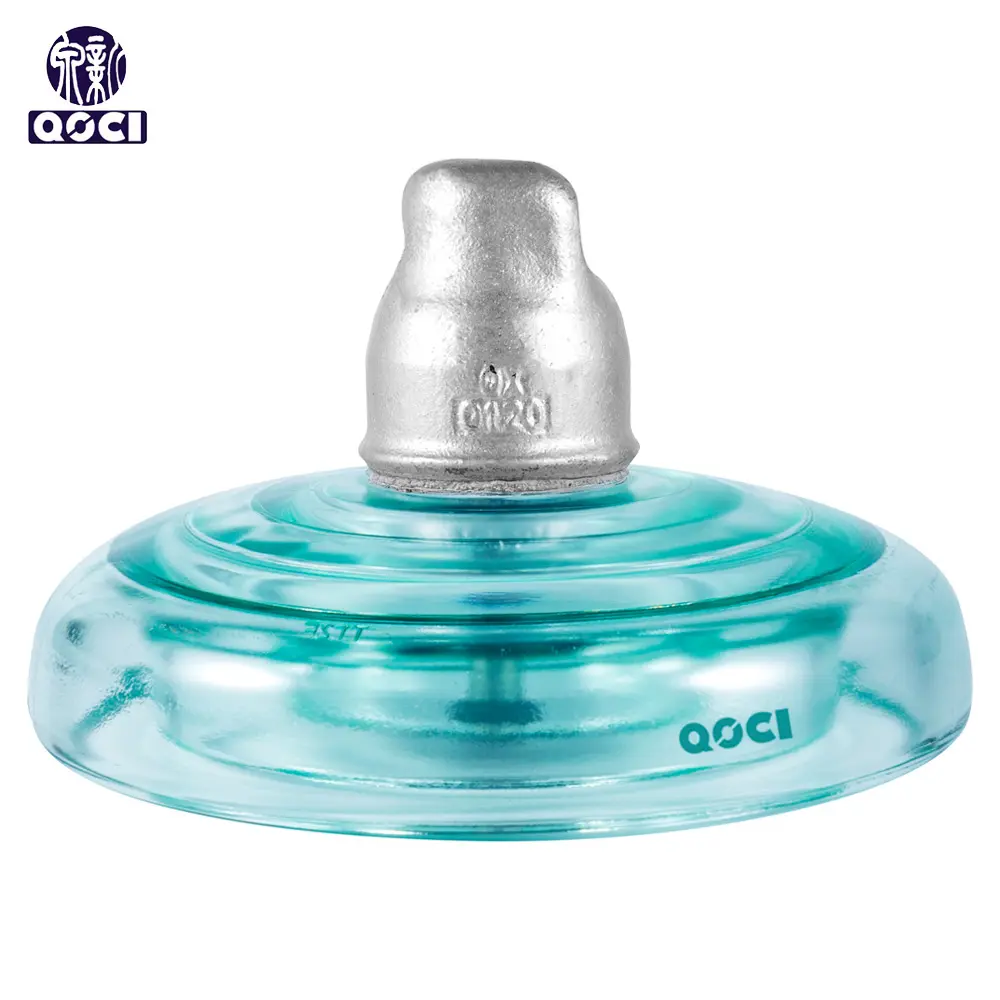

High-Quality U120BLP (146/280/450) Anti-pollution Glass Insulator Supplier, Factory

The core function of the U120BP anti-fouling glass insulator is to prevent "pollution flashover": During foggy or light rainy weather, contamination layers such as industrial dust and salt particles become moistened and form a conductive path on the insulator's surface. This can cause the high-voltage current to break down the air and generate intense arcing — an event known as a "pollution flashover" accident. The U120BLP significantly increases the creepage distance (i.e., the length of the leakage path for current along the surface), making it much more difficult for a continuous conductive channel to form on the insulator surface under high humidity conditions. As a result, it greatly enhances operational safety in harsh weather environments.

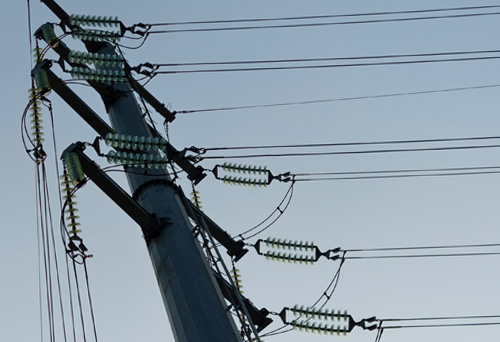

U120bp glass insulator - 8.jpg

Product Description

ℹ️

Product Information

IEC Standard: U120BLP

U Disc Suspension Insulator
120 Mechanical failing load of 120kN
B Ball And Socket Type
L Longer pin, assembled to achieve a product structural height of 146mm
P For Anti-Pollution type
📏

Dimensional Data

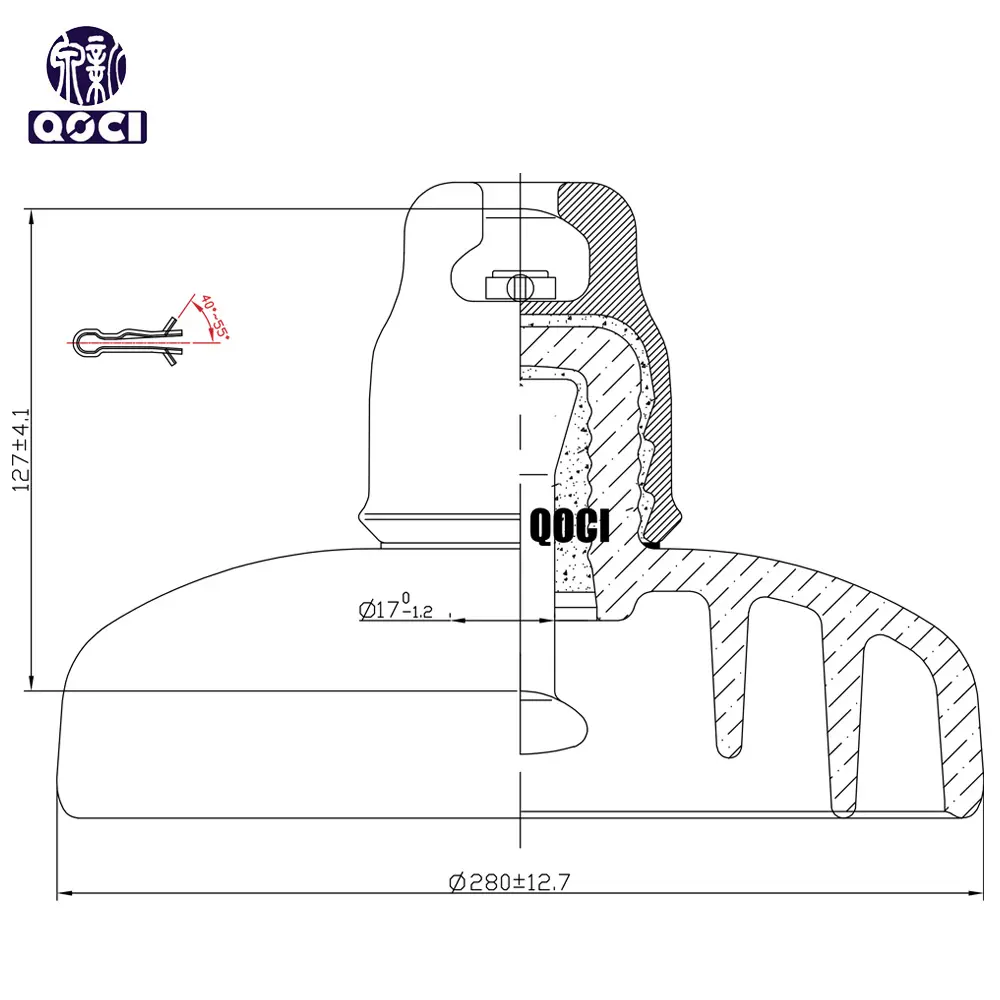

Spacing (S) 146mm
Diameter (D) 280mm
Creepage distance (L) 450mm
Socket coupling 16A

Technical Specifications

Mechanical Values

Mechanical failing load 120kN
Mechanical residual strength 96kN

Electrical Values

Wet power frequency withstand voltage 50kV
Dry lightning impulse withstand voltage 125kV
Power frequency puncture voltage 130kV
📡

Radio-influence Voltage

RIV test voltage rms to ground 10 kV
Maximum RIV at 1000 kHz 50 μV
Corona visual test P/C 18/22 KV
Power frequency electric arc voltage 0.12s/20kA
📦

Packing & Standards

Net weight 5.6kg
Carton Quantity 5pcs / 6pcs
Industry Standard(s) IEC60383-1:1993, MOD / GB/T1001.1
Frequently Asked Questions
What is the mechanical failing load of the U120BLP insulator?
The U120BLP insulator has a rated mechanical failing load of 120kN.
What does the "P" in the model name represent?
The "P" indicates that this is an anti-pollution type insulator, suitable for environments with higher contamination levels.
What is the creepage distance for this product?
The total creepage distance for this model is 450mm.
Which international standards are followed during manufacturing?
The product is manufactured in accordance with IEC60383-1:1993 and GB/T1001.1 standards.
What are the weight and packing specifications?
Each unit has a net weight of approximately 5.6kg, and they are typically packed in cartons of 5 or 6 pieces.
What type of coupling does this insulator use?
It utilizes a 16A Ball and Socket type coupling system.
