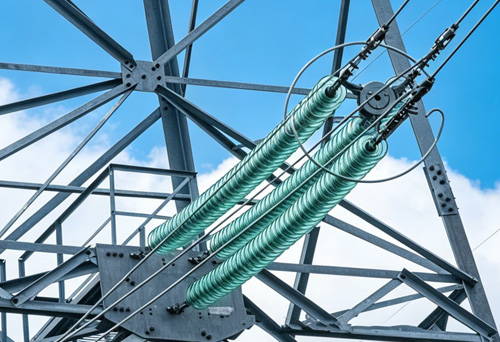

The core function of the U70BP anti-fouling glass insulator is to prevent "pollution flashover": During foggy or light rainy weather, contamination layers such as industrial dust and salt particles become moistened and form a conductive path on the insulator's surface. This can cause the high-voltage current to break down the air and generate intense arcing — an event known as a "pollution flashover" accident. The U70BLP significantly increases the creepage distance (i.e., the length of the leakage path for current along the surface), making it much more difficult for a continuous conductive channel to form on the insulator surface under high humidity conditions. As a result, it greatly enhances operational safety in harsh weather environments.


Product Description

Product Information

IEC Stand: U70BLP
U Disc Suspension Insulator
70 Mechanical failing load of 70kN
B Ball And Socket Type
L Longer steel pin,Assembled to achieve a product structural height of 146mm
P For Anti-Pollution type

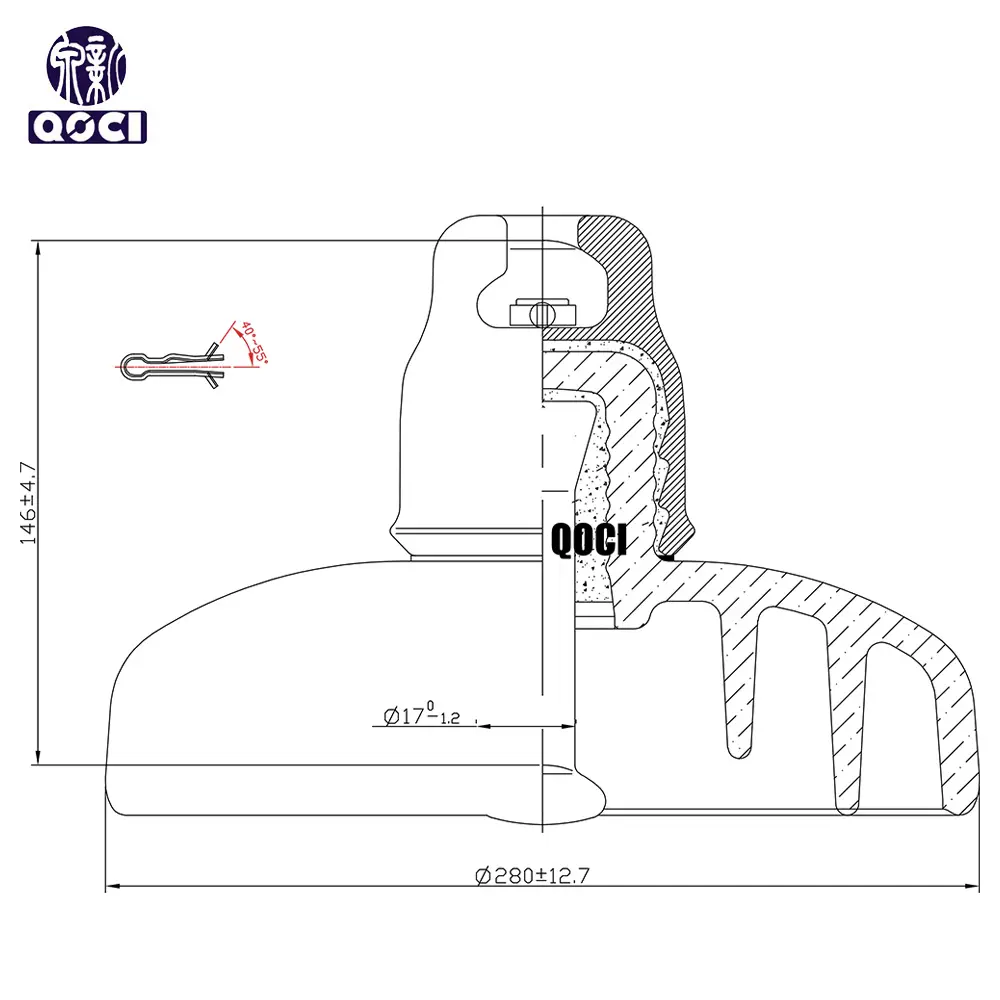

Dimensional & Mechanical Data

Spacing (S)146mm
Diameter (D)280mm
Creepage distance (L)450mm
Socket coupling16
Mechanical failing load70kN
Mechanical residual strength56kN

Electrical Values

Wet power frequency withstand voltage50kV
Dry lightning impulse withstand voltage125kV
Power frequency puncture voltage130kV

Radio-influence Voltage (RIV)

RIV test voltage rms to ground / Max RIV at 1000 kHz10 kV / 50 μV
Corona visual lest P/C18/22 KV
Power frequency electric arc voltage0.12s/20kA

Packing & Standards

Net weight5.8kg
Carton Quantity5pcs/6pcs
Industry StandardIEC60383-1:1993, MOD / GB/T1001.1
U70BLP Detail Component
U70BP-6 Packaging
Industry Standard Product

Frequently Asked Questions

What does the "U70BLP" designation mean?
It represents a Disc Suspension Insulator (U) with a 70kN mechanical failing load, ball and socket type (B), structural height of 146mm (L), and anti-pollution design (P).
Is this insulator suitable for high-pollution areas?
Yes, the "P" in the model name indicates it is an Anti-Pollution type, specifically designed for environments with higher contamination risks.
What are the key electrical performance ratings?
The unit features a wet power frequency withstand voltage of 50kV, a dry lightning impulse withstand of 125kV, and a puncture voltage of 130kV.
What is the creepage distance of the U70BLP?
This model offers a creepage distance of 450mm, providing excellent surface insulation performance.
How is the product packaged for shipping?
The insulators are typically packed in cartons of 5 or 6 pieces, with each individual unit weighing approximately 5.8kg.
Does this product meet international quality standards?
Yes, it is manufactured in strict accordance with IEC60383-1:1993 and GB/T1001.1 standards.
